In the ever-evolving landscape of manufacturing, precision and efficiency are paramount. Industries ranging from automotive to aerospace rely on cutting-edge technologies to meet the demands of complex designs and tight tolerances.
Among these technologies, tube laser cutting machines have emerged as a versatile solution, offering unparalleled accuracy and flexibility in shaping various materials. This article delves into the intricacies of tube laser cutting machines, exploring their applications, advantages, and the latest advancements shaping the industry.
Understanding Tube Laser Cutting
Accurl tube laser cutting utilizes laser technology to precisely cut through tubes and profiles made of various materials, including metals and plastics.
Unlike traditional cutting methods such as sawing or milling, which can be time-consuming and produce rough edges, tube laser cutting offers exceptional precision and smooth finishes.

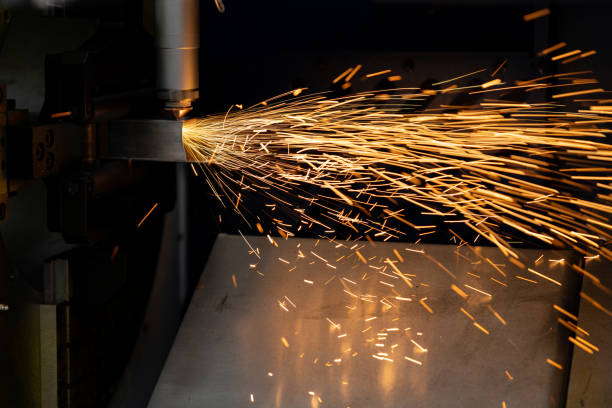

The process involves directing a high-powered laser beam onto the surface of the tube, melting or vaporizing the material along a predetermined path. As the laser beam moves across the tube’s surface guided by advanced computer software, intricate shapes and patterns can be effortlessly created with minimal material wastage.
How Tube Laser Cutting Works?
At the heart of tube laser cutting machines is a powerful laser source, typically a fiber laser or CO2 laser, capable of emitting a concentrated beam of light. This laser beam is then directed through a series of mirrors and lenses, focusing it onto the surface of the tube with pinpoint accuracy.
As the tube rotates and moves along the machine’s axis, the laser beam precisely cuts through the material, guided by CAD (Computer-Aided Design) or CAM (Computer-Aided Manufacturing) software that translates digital designs into precise cutting instructions.
Materials Suitable for Tube Laser Cutting
One of the key advantages of tube laser cutting machines is their ability to process a wide range of materials with varying thicknesses. Common materials suitable for tube laser cutting include:
- Metals: Stainless steel, carbon steel, aluminum, brass, copper, and titanium are among the metals frequently cut using tube laser cutting machines. Their excellent thermal conductivity and workability make them ideal candidates for laser processing.
- Plastics: Thermoplastics such as acrylic, polycarbonate, and PVC can also be effectively cut using tube laser technology. The precise control offered by lasers ensures clean cuts without the risk of melting or deformation.
Applications of Tube Laser Cutting
The versatility of tube laser cutting machines lends itself to a myriad of applications across diverse industries.
From architectural structures to intricate components for machinery, tube laser cutting has revolutionized the way complex shapes are fabricated. Some notable applications include:
Automotive Industry
In the automotive sector, tube laser cutting machines play a crucial role in manufacturing exhaust systems, chassis components, roll cages, and other structural elements.
The ability to create precise cuts in various metals enables automakers to enhance vehicle performance, reduce weight, and improve fuel efficiency.
Aerospace and Defense
The aerospace and defense industries demand the highest levels of precision and quality in component manufacturing. Tube laser cutting machines are instrumental in producing aerospace-grade tubing, airframe structures, missile components, and intricate parts for spacecraft.
The lightweight yet durable materials processed by laser cutting contribute to the overall performance and safety of aerospace vehicles.
Furniture and Interior Design
Tube laser cutting has found applications in the realm of furniture design and interior architecture, where intricate patterns and unique shapes are desired.
Designers leverage the precision of laser cutting to create custom metal and plastic components for tables, chairs, partitions, and decorative elements. The ability to seamlessly integrate functionality with aesthetics makes tube laser cutting a preferred choice in modern interior design.
Medical Devices
The medical device industry relies on tube laser cutting for manufacturing surgical instruments, implantable devices, and diagnostic equipment.
Laser-cut tubing made from biocompatible materials such as stainless steel and titanium meets stringent regulatory standards while ensuring precision and consistency in medical device fabrication. This enables advancements in minimally invasive procedures and patient care.
Advantages of Tube Laser Cutting Machines
Tube laser cutting machines offer several distinct advantages over conventional cutting methods, making them indispensable tools in modern manufacturing facilities. Some of the key benefits include:
Precision and Accuracy
One of the primary advantages of tube laser cutting is its unparalleled precision. Laser-guided cutting ensures tight tolerances and intricate detailing, allowing manufacturers to achieve exacting specifications with consistency.
This level of precision minimizes material wastage and reduces the need for secondary finishing processes, resulting in cost savings and enhanced product quality.
Versatility and Flexibility
Tube laser cutting machines are highly versatile and capable of handling a wide range of materials and geometries. Whether cutting round, square, or rectangular tubes, as well as open or closed profiles, these machines offer unmatched flexibility in fabrication.
Moreover, advancements in laser technology have expanded the range of materials that can be processed, including reflective metals and non-ferrous alloys, further widening the scope of applications.
Increased Productivity
By automating the cutting process and integrating advanced software solutions, tube laser cutting machines boost productivity in manufacturing operations.
The ability to program complex cutting patterns and execute them rapidly reduces production lead times and enhances throughput. Additionally, the elimination of manual intervention reduces the risk of errors, ensuring consistent quality across batches.
Minimal Material Distortion
Traditional cutting methods such as sawing or drilling can introduce heat-affected zones and mechanical stresses, leading to material distortion and warping.
In contrast, tube laser cutting minimizes thermal distortion by focusing heat precisely on the cutting path, resulting in clean, distortion-free edges. This is particularly advantageous when working with thin-walled tubing or heat-sensitive materials.
Environmental Sustainability
Tube laser cutting is inherently more environmentally friendly compared to traditional cutting methods that generate chips, dust, and harmful emissions. The non-contact nature of laser cutting minimizes material waste, as the kerf width (width of material removed during cutting) is significantly narrower than that of conventional cutting tools.
Furthermore, the energy efficiency of modern laser systems reduces overall power consumption, contributing to sustainable manufacturing practices.
Recent Innovations in Tube Laser Cutting
The field of tube laser cutting continues to evolve with ongoing technological advancements aimed at enhancing efficiency, precision, and versatility. Some notable innovations shaping the industry include:
Integration of Artificial Intelligence
Leading manufacturers are incorporating artificial intelligence (AI) and machine learning algorithms into tube laser cutting systems to optimize cutting parameters and improve process control.
AI algorithms analyze real-time data from sensors and cameras to adjust cutting speeds, laser power, and focus position, ensuring optimal results even in complex cutting scenarios. This adaptive control mechanism maximizes efficiency while minimizing material waste and setup times.
3D Laser Cutting Capabilities
Traditional tube laser cutting machines are predominantly used for 2D cutting applications, where the laser beam moves along a single axis to produce flat patterns on cylindrical or rectangular tubes.
However, recent advancements in 3D laser cutting technology have enabled machines to perform multi-axis cutting operations, allowing for the creation of intricate 3D shapes and contours. This opens up new possibilities in industries such as automotive prototyping, aerospace manufacturing, and architectural design.
Remote Monitoring and Connectivity
Industry 4.0 principles are being integrated into tube laser cutting machines, enabling remote monitoring, predictive maintenance, and data-driven decision-making. Smart sensors embedded within the machines collect real-time performance metrics, which are transmitted to cloud-based platforms for analysis.
Manufacturers can remotely monitor machine status, track production metrics, and diagnose potential issues, thereby minimizing downtime and optimizing overall equipment effectiveness (OEE).
Hybrid Laser Cutting Systems
Hybrid laser cutting systems combine the capabilities of traditional laser cutting with other cutting technologies, such as waterjet or plasma cutting, to offer enhanced versatility and efficiency. These hybrid systems leverage the strengths of each cutting method to overcome limitations and expand the range of materials and thicknesses that can be processed.
For example, waterjet cutting excels in cutting thick materials and materials that are sensitive to heat, while laser cutting provides high precision and speed. By integrating both technologies into a single machine, manufacturers can tackle a broader spectrum of cutting tasks with optimal results.
Adaptive Tube Handling Systems
To further streamline production processes and increase throughput, manufacturers are investing in adaptive tube handling systems that automate material loading, positioning, and unloading.
These systems use robotics and advanced vision systems to accurately identify and manipulate tubes of varying sizes and shapes, minimizing setup times and maximizing machine uptime. By seamlessly integrating tube handling with laser cutting operations, manufacturers can achieve greater efficiency and productivity in their manufacturing workflows.
Laser Welding Integration
In addition to cutting, tube laser cutting machines are increasingly being equipped with laser welding capabilities, enabling the seamless joining of cut components without the need for additional welding processes.
This integration allows for the creation of complex assemblies and welded structures directly on the laser cutting machine, eliminating the need for manual welding or post-processing. Laser welding offers advantages such as high welding speeds, minimal distortion, and excellent weld quality, making it a valuable addition to tube laser cutting systems for applications requiring precise joining.
Conclusion
Tube laser cutting machines represent a pinnacle of precision engineering, offering unmatched versatility, accuracy, and efficiency in the fabrication of tubular components. From automotive and aerospace to furniture design and medical devices, the applications of tube laser cutting are diverse and far-reaching.
As technology continues to advance and industry demands evolve, tube laser cutting will remain at the forefront of innovation, driving the next generation of manufacturing excellence. By embracing the latest advancements and addressing challenges with ingenuity and expertise, manufacturers can unlock the full potential of tube laser cutting to shape a brighter future for industrial manufacturing.
