Printed Circuit Boards (PCBs) are essential components in virtually all electronic devices, acting as the foundation upon which electronic circuits are built. Among the various types of PCBs, double-sided PCBs are particularly notable for their versatility and widespread use. This article will provide an in-depth exploration of Double Sided PCB fabrication, covering their structure, benefits, fabrication process, applications, and considerations for design and manufacturing.

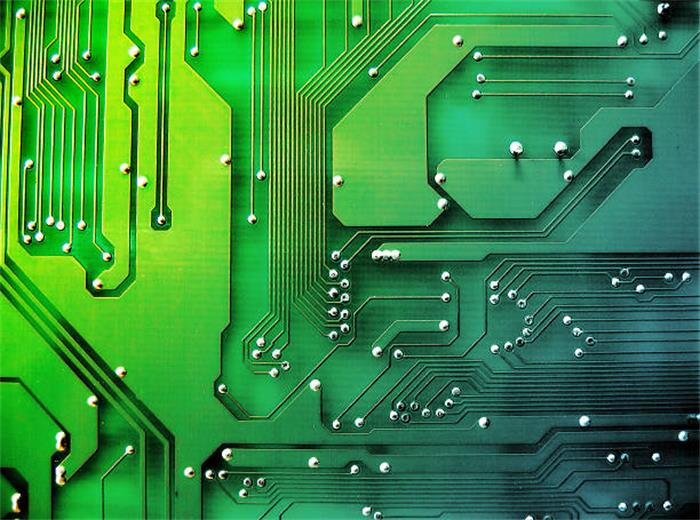

Understanding Double-Sided PCBs
What is a Double-Sided PCB?
A double-sided PCB, also known as a double-layer PCB, features a substrate with a conductive copper layer on both the top and bottom sides. This configuration allows for more complex and dense circuit designs compared to single-sided PCBs, which only have one layer of conductive material. Components can be mounted on both sides of the board, and vias (holes) are used to connect the circuits on each side.
Structure of Double-Sided PCBs
Double-sided PCBs consist of several key components:
- Substrate: The base material, typically made of fiberglass or other insulating materials, provides mechanical support and insulation for the circuit.
- Copper Layer: Both sides of the substrate are coated with a thin layer of copper, which is etched to create the desired circuit pattern.
- Solder Mask: A protective layer applied over the copper to prevent oxidation and short circuits. It also helps in soldering components.
- Silkscreen: A layer of ink used to print labels, component designators, and other markings on the board for easy identification and assembly.
- Vias: Small holes drilled through the PCB and plated with copper to create electrical connections between the top and bottom layers.
Benefits of Double-Sided PCBs
Increased Circuit Density
Double-sided PCBs allow for more complex and dense circuit designs compared to single-sided PCBs. By utilizing both sides of the board, designers can fit more components and connections in a smaller area, leading to more compact and efficient electronic devices.
Enhanced Design Flexibility
The ability to place components on both sides of the PCB provides greater design flexibility. Designers can optimize the layout for signal integrity, power distribution, and thermal management, resulting in better performance and reliability.
Improved Performance
Double-sided PCBs can support more advanced electronic circuits, such as those found in modern computing, telecommunications, and industrial applications. The additional layer of circuitry helps in reducing the overall length of interconnections, thereby minimizing signal loss and improving performance.
Cost-Effective Solution
While more complex than single-sided PCBs, double-sided PCBs are still relatively cost-effective compared to multi-layer PCBs. They offer a good balance between complexity and cost, making them suitable for a wide range of applications.
Fabrication Process of Double-Sided PCBs
1. Design and Layout
The fabrication process begins with designing the PCB layout using specialized software such as Eagle, Altium Designer, or KiCad. The design includes the placement of components, routing of electrical connections, and the creation of vias to connect the top and bottom layers.
2. Printing the Design
Once the design is finalized, the next step is to transfer the circuit pattern onto the copper-clad substrate. This is typically done using a photolithographic process:
- Photoresist Application: A photoresist, a light-sensitive material, is applied to both sides of the copper-clad substrate.
- Exposure: The photoresist-coated substrate is exposed to ultraviolet (UV) light through a photomask that contains the circuit pattern. The UV light hardens the photoresist in the exposed areas.
- Development: The substrate is then developed in a chemical solution that removes the unexposed photoresist, leaving the circuit pattern on the copper.
3. Etching
The next step is to etch away the unwanted copper, leaving behind the desired circuit pattern. This is typically done using a chemical etchant such as ferric chloride or ammonium persulfate. The etchant removes the exposed copper, while the hardened photoresist protects the circuit pattern.
4. Drilling
After etching, holes are drilled into the PCB to create vias and mount components. The drilling process must be precise to ensure proper alignment and connectivity between the top and bottom layers.
5. Plating
The drilled holes are then plated with copper to create electrical connections between the layers. This involves depositing a thin layer of copper inside the holes through an electroplating process.
6. Solder Mask Application
A solder mask is applied to both sides of the PCB to protect the copper traces from oxidation and prevent solder bridges during component assembly. The solder mask also helps to define the areas where solder should be applied, such as pads and vias.
7. Silkscreen Printing
A silkscreen layer is applied to print labels, component designators, and other markings on the PCB. This helps in identifying components and guiding the assembly process.
8. Surface Finish
A surface finish is applied to the exposed copper areas to prevent oxidation and improve solderability. Common surface finishes include HASL (Hot Air Solder Leveling), ENIG (Electroless Nickel Immersion Gold), and OSP (Organic Solderability Preservative).
9. Final Inspection and Testing
The final step involves inspecting and testing the PCBs to ensure they meet the required specifications and quality standards. This includes visual inspection, automated optical inspection (AOI), and electrical testing to verify connectivity and performance.
Applications of Double-Sided PCBs
Double-sided PCBs are widely used in various industries due to their versatility and performance advantages. Some common applications include:
Consumer Electronics
Double-sided PCBs are used in a wide range of consumer electronic devices such as smartphones, tablets, televisions, and home appliances. Their compact design and high circuit density make them ideal for modern electronic gadgets.
Automotive Industry
In the automotive industry, double-sided PCBs are used in various systems, including engine control units, infotainment systems, and advanced driver-assistance systems (ADAS). They provide the reliability and performance needed for automotive applications.
Industrial Equipment
Industrial equipment such as control systems, sensors, and automation devices rely on double-sided PCBs for their robust performance and durability. These PCBs can withstand harsh environmental conditions and provide reliable operation.
Telecommunications
Telecommunication devices, including routers, switches, and base stations, utilize double-sided PCBs to handle complex circuitry and high-frequency signals. The additional layer of circuitry helps in managing signal integrity and reducing interference.
Medical Devices
Medical devices such as diagnostic equipment, patient monitors, and wearable health devices use double-sided PCBs for their compact size and high reliability. These PCBs ensure accurate and dependable performance in critical applications.
Considerations for Double-Sided PCB Design and Manufacturing
Design Considerations
When designing double-sided PCBs, several factors need to be considered:
- Component Placement: Optimizing the placement of components on both sides of the PCB is crucial for signal integrity and thermal management.
- Thermal Management: Effective thermal management techniques, such as using thermal vias and heat sinks, help dissipate heat generated by components.
- Signal Integrity: Ensuring proper signal routing and minimizing interference is essential for high-performance applications. This includes careful planning of trace widths, spacing, and grounding.
- Vias: The placement and size of vias should be carefully considered to ensure reliable connectivity and minimize signal loss.
Manufacturing Considerations
Manufacturing double-sided PCBs requires precision and attention to detail:
- Material Selection: Choosing the right substrate and copper thickness based on the application requirements is essential for durability and performance.
- Quality Control: Rigorous quality control processes, including AOI, X-ray inspection, and electrical testing, are necessary to ensure the reliability of the PCBs.
- Cost Management: Balancing cost and quality is crucial. Efficient manufacturing processes and careful material selection can help manage costs without compromising performance.
Conclusion
Double-sided PCBs play a pivotal role in the electronics industry, offering a balance between complexity, performance, and cost. Their ability to accommodate more complex circuits and components on both sides makes them ideal for a wide range of applications, from consumer electronics to industrial equipment and medical devices.
The fabrication process of double-sided PCBs involves several critical steps, including design, etching, drilling, plating, and testing. Each step must be executed with precision to ensure the final product meets the required specifications and quality standards.
As technology continues to advance, the demand for high-performance and reliable double-sided PCBs will only grow. By understanding the fabrication process, benefits, and considerations for design and manufacturing, businesses can leverage double-sided PCBs to develop innovative and efficient electronic devices that meet the needs of a rapidly evolving market.
