3D printing and 3D mapping transforms a design that starts as a CAD model into an actual product within hours. This enables designers, engineers and architects to test concepts quickly.
The additive manufacturing process minimizes waste by only using the materials needed to fashion a part or component. This sharply reduces material handling costs.
Bringing Digital Designs to Life Through Model Cr
3D printing is a powerful technology that can help bring your ideas to life. In the past, creating prototypes or models for a product was a time-consuming process, but with 3D printing, you can create them quickly and efficiently.
3D printers are able to turn digital CAD (Computer-Aided Design) files into three-dimensional physical solid objects or parts by adding thin layers of material one at a time. The result is an object that looks exactly like the model you envisioned.
Once you have the design for the item that you want to create, it is important to use a software program to “slice” the model. This will help the 3D printer know where to build each layer of the model. Once the model is sliced, it will be sent to the printer where it will begin the printing process.

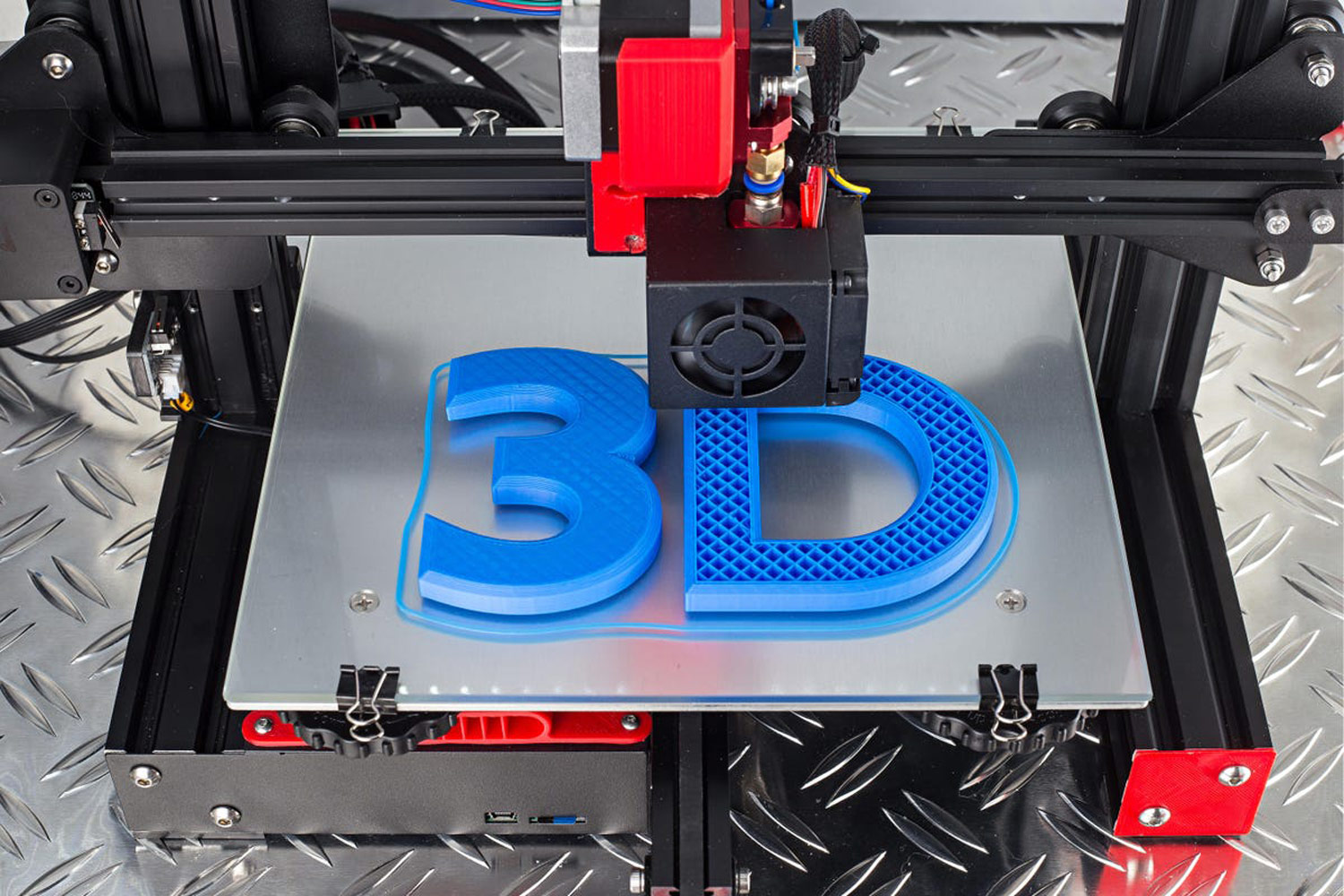

There are several types of 3D printers on the market, but the most common is a fused deposition modeling (FDM) printer. These printers use thermoplastic filaments that are melted through a hot nozzle to form the desired object layer by layer.
Other types of 3D printers include SLA (Selective Laser Sintering), SLM (Selective Laser Melting) and Vat Photopolymerisation (3D printing with photosensitive polymers). Each of these processes has its own advantages and disadvantages, but all of them are able to produce high-quality products in a relatively short period of time.
Getting Started With 3D Printing
The 3D printing process is a new and innovative way of making objects. Unlike traditional manufacturing methods such as casting, machining and forming, which involve the removal of material from a block of solid plastic, 3D printing creates an object by adding layers of thin plastic filament one on top of another to form the final product.
The first step in 3D printing is creating a virtual model of the desired object using computer-aided design (CAD) software. The model works like a blueprint that the printer reads to create the actual physical object. Once the model is complete, it must be prepared for printing by slicing it into multiple layers. The slicing process uses software to scan the model and then break it down into hundreds or even thousands of thin, horizontal layers.
Once sliced, the model is transferred to the 3D printer where it is printed in thin layers. The layering is what gives 3D printing its unique characteristics, as each printed layer can be viewed from different angles. The printed layer is then cooled or cured to harden it.
Getting started with 3D printing is easy, especially for those who have a good understanding of geometry and computer programming skills. There are a number of websites that provide free 3D printing software and models such as Tinkercad, Fusion 360 and Blender, as well as a wide selection of pre-made designs on online platforms like Thingiverse.
Using Model Cr to Create Custom Objects
While the technology is still not quite at the point where it can replace traditional manufacturing, 3D printing does allow for much faster prototyping. This reduces the time it takes to go from an idea to holding a finished product in your hands, cutting down on lead times significantly. It also allows for more iterations to be made without the expense of creating and maintaining molds that are required in other manufacturing processes.
In addition, the ability to use a wide range of materials means that 3D printed products can be lighter and stronger than many other types of objects. While plastics are the most common, speciality printing materials like nitinol and gold can create more durable and complex parts.
The first step in the 3D printing process is creating a model of the object using CAD software. Once this has been completed, it is converted into a file that the printer can read. This is typically an STL file but can be a different format depending on the printer.
The second step is building the actual object using one of the many available 3D printers on the market. This can be done through FDM, SLA or SLS printing, among other options. Depending on the type of printing process used, the object may then need to be “finished” by sanding or smoothing out the surfaces and removing any supports that were needed during the printing process.
Using Model Cr to Create Parts
What was once considered a purely futuristic technology is now widely used in the manufacturing industry. It allows for quicker product creation, reduced costs for one-off production runs and can be made from a variety of materials. Its use extends beyond consumer products, into aerospace and even medicine. For example, Relativity Space uses SLM metal printing techniques to 3D print rocket components like engine nozzles and fuel tanks. Their printed nozzles weigh less than traditionally manufactured nozzles and are up to five times as strong.
The concept behind 3D printing is called additive manufacturing or AM, which is a process that builds up a part layer by layer rather than cutting away or shaping a block of material like in subtractive and formative manufacturing processes. This is why it can often create more geometrically complex shapes and structures than traditional manufacturing technologies.
Many different materials can be used in AM, including polymers, plastics and metals. Speciality materials such as gold, titanium and nitinol can also be used to make high-performance parts and devices.
While CAD software is a key component in the development of 3D-printed models, the accuracy of these models can be limited. This can lead to some issues in the final production, for instance, support struts might need to be removed, which can add time and cost to a project. This is why it’s important to have the correct CAD skills and a good understanding of the limitations of the printing technology before getting started with a design.
