The Pressure sensor, also known as transducers or pressure transducers, are essential devices used to measure pressure. They convert mechanical pressure into an electrical signal, which can then be processed and displayed. Pressure sensors are widely used in various industries, including automotive, aerospace, medical, and industrial automation.
Types of Pressure Sensors
There are several types of pressure sensors, each with its own unique characteristics and applications:
- Strain Gauge Pressure Sensors: These sensors utilize strain gauges to measure the deformation caused by pressure. They are highly accurate and widely used in various applications.
- Piezoresistive Pressure Sensors: Similar to strain gauge sensors, piezoresistive sensors use the change in electrical resistance of a material due to strain. They are often used in applications requiring high sensitivity and fast response times.
- Capacitive Pressure Sensors: These sensors measure changes in capacitance due to pressure-induced deformation of a dielectric material. They are known for their high accuracy and stability.
- Piezoelectric Pressure Sensors: These sensors generate an electrical charge when subjected to pressure. They are commonly used in applications requiring high sensitivity and fast response times, such as shock and vibration measurement.
- Differential Pressure Sensors: These sensors measure the difference in pressure between two points. They are used in applications such as flow measurement and level sensing.
Key Considerations When Choosing a Pressure Sensor
When selecting a pressure sensor, several factors should be considered:
- Pressure Range: The sensor must be capable of measuring the specific pressure range required for your application.
- Accuracy: The accuracy of the sensor determines the precision of your measurements.
- Response Time: The response time of the sensor is the speed at which it can detect and respond to changes in pressure.
- Temperature Range: The sensor must be able to operate within the temperature range of your application.
- Environmental Factors: Consider factors such as humidity, vibration, and electromagnetic interference that may affect the sensor’s performance.
- Output Signal: The sensor’s output signal should be compatible with your data acquisition system or controller.
Applications of Pressure Sensors
Pressure sensors are used in a wide range of applications, including:
- Automotive: Tire pressure monitoring systems, engine management systems, and airbag deployment systems.
- Aerospace: Flight control systems, altitude measurement, and engine performance monitoring.
- Medical: Blood pressure monitoring, respiratory rate measurement, and anesthesia delivery systems.
- Industrial Automation: Process control, level measurement, and flow measurement.
- Weather Forecasting: Barometric pressure measurement for weather prediction.
Advancements in Pressure Sensor Technology
Recent advancements in pressure sensor technology have led to the development of more accurate, reliable, and versatile sensors. These advancements include:
- Miniaturization: Smaller and more compact sensors are now available, making them suitable for a wider range of applications.
- Increased Durability: Sensors are becoming more resistant to harsh environments and can withstand extreme temperatures and pressures.
- Improved Accuracy: Advances in manufacturing techniques and materials have led to increased accuracy and precision in pressure measurements.

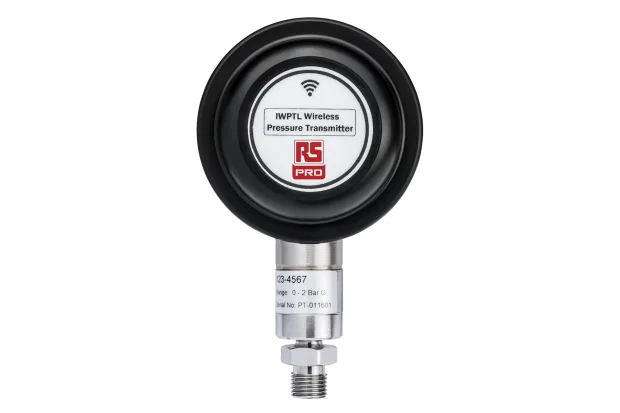

- Wireless Integration: Wireless pressure sensors are becoming more common, offering greater flexibility and ease of installation.
Pressure sensors play a vital role in various industries, providing accurate and reliable measurements of pressure. By understanding the different types of pressure sensors, their key considerations, and their applications, you can select the most suitable sensor for your specific needs.
