CNC (Computer Numerical Control) milling is a precise and efficient manufacturing process used to shape and cut metals into intricate parts and components. The technique is used extensively across many industries, including aerospace, automotive, medical, and electronics, due to its ability to produce parts with exceptional accuracy and tight tolerances. In this article, we’ll delve into the key aspects of cnc milling metals its advantages, types of metals used, and the industries that rely on this technology.
What Is CNC Milling?

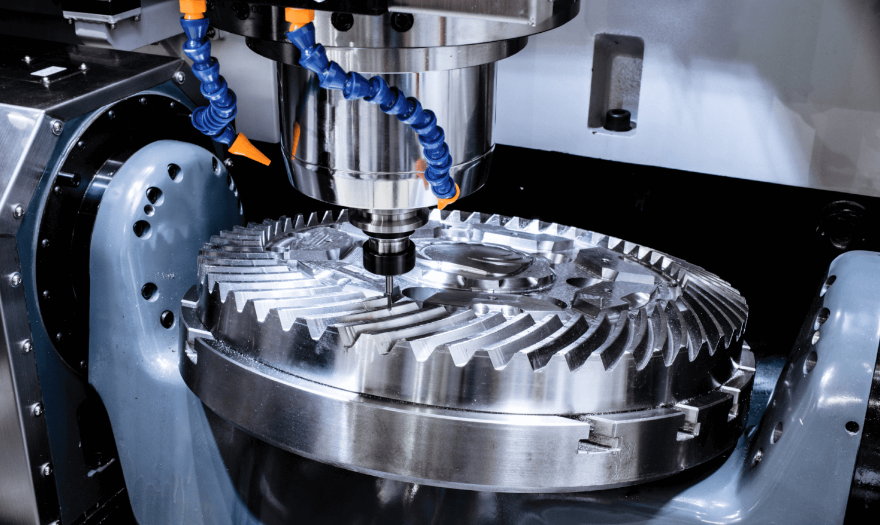

CNC milling refers to the use of a rotating cutter or tool to remove material from a workpiece. The workpiece is placed on a table and moved along multiple axes, controlled by a computer program. CNC milling can produce a wide variety of shapes, from simple parts to complex geometries, with precision that is difficult to achieve with manual machining methods.
CNC milling is often chosen for its flexibility and accuracy, particularly when working with metals that require high tolerances and detailed finishes. The use of CNC technology ensures consistency in production, making it ideal for both small and large-scale manufacturing runs.
How Does CNC Milling Work?
CNC milling machines are operated by a computer that is programmed with a specific set of instructions. These instructions guide the machine in performing specific tasks such as drilling, cutting, or shaping the material. The key components of CNC milling machines include:
- Workpiece: The metal material being processed, which can be clamped or fixed onto the machine bed.
- Cutting Tool: The rotating tool that removes material from the workpiece to shape it into the desired form.
- Axes: CNC milling machines are typically operated on multiple axes (X, Y, and Z) that allow for movement in three-dimensional space.
- Computer Program: The software that dictates the cutting process, including the speed, feed rate, and tool paths required to achieve the desired result.
The process begins by loading a 3D design file (usually in the form of a CAD file) into the CNC machine. The file is then converted into machine-readable code (G-code) that provides detailed instructions for the tool to follow.
Types of Metals Used in CNC Milling
CNC milling is capable of machining a wide range of metals, each with its unique properties. These materials are often chosen based on the specific requirements of the part being produced, including strength, weight, corrosion resistance, and machinability. Some of the most common metals used in CNC milling include:
1. Aluminum
Aluminum is one of the most widely used metals in CNC milling due to its lightweight nature, excellent machinability, and corrosion resistance. It is commonly used in industries such as aerospace, automotive, and electronics. Aluminum alloys like 6061 and 7075 offer a good balance of strength and weight, making them ideal for applications where reducing weight is a priority.
Advantages of aluminum:
- Lightweight: Makes it ideal for applications in the aerospace and automotive sectors where reducing weight is important.
- Corrosion Resistant: Aluminum naturally forms a protective oxide layer, which helps resist rust and corrosion.
- Easy to Machine: Aluminum is relatively soft compared to other metals, making it easier to machine into complex shapes.
2. Steel
Steel is one of the most commonly used metals in CNC milling, valued for its strength and durability. It comes in various types, including carbon steel, stainless steel, and tool steel. Steel is used in everything from construction to manufacturing and is essential for producing parts that require high strength and toughness.
Advantages of steel:
- High Strength: Steel provides high tensile strength, which is important for applications requiring durability and load-bearing capacity.
- Versatility: There are many different types of steel available, each with unique properties suited to various applications.
- Long Service Life: Steel parts can withstand wear and tear over time, making them ideal for heavy-duty applications.
3. Titanium
Titanium is a highly durable and lightweight metal known for its strength and corrosion resistance. It is often used in demanding industries such as aerospace, medical devices, and military applications. While titanium is more challenging to machine due to its hardness, CNC milling can produce highly precise titanium components with the right tools and techniques.
Advantages of titanium:
- Strength-to-Weight Ratio: Titanium is stronger than many steels but is much lighter, making it ideal for aerospace and high-performance applications.
- Corrosion Resistance: Titanium is highly resistant to corrosion, even in extreme environments.
- Biocompatibility: Titanium is often used in medical devices and implants due to its compatibility with the human body.
4. Brass
Brass is an alloy of copper and zinc, known for its machinability and corrosion resistance. It is often used in applications where electrical conductivity and durability are required, such as in connectors, switches, and fittings. Brass is easy to machine, making it a popular choice for precision parts.
Advantages of brass:
- Good Machinability: Brass is easy to machine, producing smooth finishes and precise dimensions.
- Corrosion Resistant: Brass has excellent resistance to corrosion, especially in marine environments.
- Electrical Conductivity: Brass is an excellent conductor of electricity, making it ideal for electrical components.
5. Copper
Copper is another metal commonly used in CNC milling due to its excellent electrical conductivity and corrosion resistance. It is often used in electrical and electronic applications such as wiring, connectors, and heat exchangers.
Advantages of copper:
- Excellent Conductivity: Copper’s high conductivity makes it ideal for electrical and electronic applications.
- Corrosion Resistance: Copper resists corrosion, which makes it suitable for use in harsh environments.
- Formability: Copper is easy to shape and machine, allowing for a variety of applications.
Conclusion
CNC milling is a highly effective and efficient process for machining metals into intricate, precise parts. Whether working with aluminum, steel, titanium, or other metals, CNC milling offers unmatched precision and versatility for a wide range of industries. By leveraging advanced technology and skilled technicians, CNC milling can produce high-quality components that meet the demanding standards of today’s manufacturing world.
