A check valve, also called a one-way valve, is a mechanical valve through which the materials in the form of fluid can only flow in one direction. These valves are critical in various hydraulic and pneumatic applications across multiple systems. Several typical uses include plumbing, watering systems, factories, oil rig installations, powered transport, and healthcare apparatus.
In this article,you will learn more about how a Check Valve works.
It is commonly known that a check valve has an inlet and outlet port. According to the type of control, fluid can flow into the valve if the pressure on the inlet port is greater than the pressure on the outlet port. It then opens to allow flow. Therefore, the refrigeration system operates as part of a closed circuit. However, when the pressure at the outlet port is more significant than at the inlet port, the check valve shuts off to prevent the fluid from flowing in the reverse direction. It means the fluid can only flow in a single direction through it, from the valve’s inner side to the outer side.
Some of the available designs of check valves are the swing check, stop check, lift check, dual plate check, and duckbill check valves. However, they all operate based on pressure differential between the two ports or openings. The internal parts and springs on the valve remain biassed closed until a specific pressure difference is achieved. Some valves come with a lever that is situated outside the valve; hence, no springs are involved in the opening or closing of the valves.
Types of Check Valves

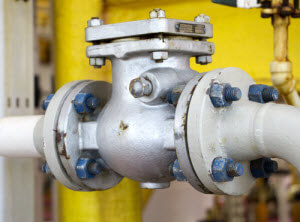

1. Swing Check Valves
These have a disc or flap that swings on an axis to shut and recline on a seat to stop the backflow of the fluid. The swing check valve can be self-contained and actuates on differential pressure. They are small, straightforward, and low-cost but contain features that do not address slamming or water hammer.
2. Lift Check Valves
They are also referred to as vertical check valves, and they operate with a stem that goes up and down to either open or close the valve opening. Using the liquid flow, the disc is moved up to fully open and allows the fluid to pass through. Such a flow reduces when the disc drops down and closes it. It can be used in relatively low pressure and mainly applied for vertical pipelines, and they are easily leaked after long periods time.
3. Stop Check Valves
These check valves feature the use of a stopper that is operated by a spring to shut the passage opening. This force overcomes the spring force acting on the stopper to make it move further from the flow path. When the pressure decreases, the spring drives the stopper into position to close the hole. These types give a tight closure yet typically need a high velocity of fluids to initiate the closure.
4. Dual Plate Check Valves
These are two swinging plates or discs hinged along different axes of the valve body. Hydraulic pressure in the tubular makes the discs open and permit flow between them. When the pressure is at its lowest level, the spring can bring the discs together again to close the passage. They are very active and also expensive.
5. Duckbill Check Valves
A duckbill check valve is another particular type of valve with an elastomeric seal in the form of the bill of a duck narrowing towards the tip. The fluid under pressure causes the seal to open up, as you portrayed by the duck bill. When this flow is ceased, the seal returns to that position to shut off the valve. Duckbill valves are the cheapest and least complex but can only operate effectively on low-pressure systems.
Construction and Design of Materials
Check valves use various materials in construction depending on the need of the system or the fluid it is handling. To sum up, wetted parts can be made of different materials, including carbon steel, stainless steel, brass, bronze, cast iron, and other metal alloys. Other non-metallic versions exist, such as HDPE, PVC, CPVC, and even polypropylene plastics can also be used. Valve seats and seals utilize rubber or polymeric materials like Buna N, EPDM, PTFE, nylon,, etc.
The most critical features for check valves are pressure classes, the flow coefficient, sealing performance, response time, reversibility prevention, durability, and many others. Special check valve designs are high-pressure check valves, corrosive resistant check valves, check valves with noiseless features, and check valve with pressure cracking for adjustment.
Check valves: Applications and Advantages
As mentioned above, check valves are used in all sorts of applications across industries and commerce where piping systems are installed. Specifically, some significant applications include: Specifically, some significant applications include:
- – A primer on isolating the threat of backflow in plumbing systems
- – Preventing backflow of the oil or fluid in a particular piece of machinery
- – Regulating the flow of water in the irrigation process.
- – Observing air patterns within ventilation ducts
- – Controlling the pressure and flow of the fluid in the hydraulic cylinder/pump.
The key benefits offered by check valves are: The key benefits provided by check valves are:
1. Prevent Reverse Flow: This is the primary purpose of checking valves, and it is a safety feature that protects systems.
2. Shield Equipment: It also prevents pressure build-up around pumps, compressors, etc. , hence the management of reverse flow.
3. Isolate Sections: Non-return valves subdivide piping/ducting into individual segments that can be managed independently.
4. Reduce Pressure Fluctuations: The valves regulate and stabilize erratic pressure fluctuations in the system downstream.
5. Lower Maintenance Needs: Allows one-way flow while fully reliable without requiring regulations or frequent inspection.
Conclusion
And so, dear reader, now you know how a check valve operates. In other words, it self-acts in response to the pressure difference in a given direction, and may open or close accordingly. While they appear to be uncomplicated elements, check valves serve as essential parts of equipment and pipeline systems. Its dependable backflow prevention besides mechanical directional flow offers the following advantages. They remain a popular tool in both industrial facilities and building systems all over the world. It is also essential that the valve’s design and construction is highly durable to ensure its usage is more extend not prone to many problems.
