Introduction
In modern manufacturing, precision and efficiency are crucial for producing high-quality parts. One of the most advanced machining technologies today is simultaneous 5-axis machining which enables cutting tools to move in five directions at the same time. This method offers superior speed, accuracy, and surface finish compared to traditional 3-axis or even 3+2-axis machining techniques.
This article explores the working principles, benefits, challenges, and applications of simultaneous 5-axis machining, helping manufacturers understand its role in modern industry.
What is Simultaneous 5-Axis Machining?
Simultaneous 5-axis machining, also known as continuous 5-axis machining, allows a CNC machine to move a cutting tool along three linear axes (X, Y, and Z) while simultaneously rotating it around two additional rotary axes (A and B or A and C). Unlike 3+2-axis machining, where the rotational axes remain fixed during cutting, simultaneous 5-axis machining continuously adjusts the tool orientation throughout the operation.
Key Features of Simultaneous 5-Axis Machining:
- Real-time movement along five axes for seamless cutting.
- Greater flexibility for machining complex geometries.
- Improved surface finish with minimal need for post-processing.
- Reduced tool wear due to better cutting angles.
How Simultaneous 5-Axis Machining Works
The machine’s controller continuously calculates and adjusts tool movements in real time, ensuring smooth and precise material removal. The cutting tool can approach the workpiece from multiple angles, reducing the need for repositioning and allowing for intricate and highly detailed cuts.
The two rotational axes can be located in different configurations:

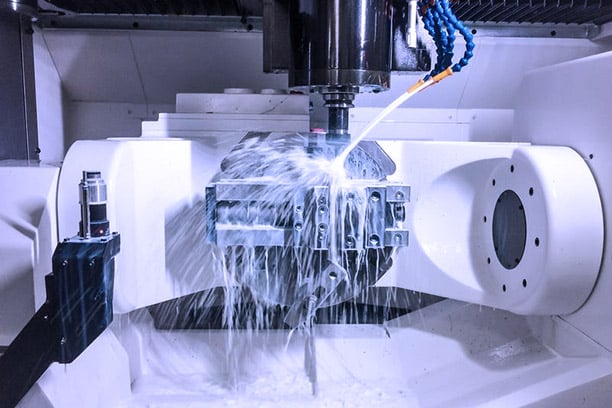

- Table/Table Configuration – Both rotational movements occur on the machine table.
- Head/Head Configuration – Both rotations happen in the spindle head.
- Head/Table Configuration – One rotation occurs in the spindle, and the other in the table.
Each configuration has advantages, with head/table setups offering greater flexibility and table/table configurations providing better stability for heavy workpieces.
Advantages of Simultaneous 5-Axis Machining
1. Enhanced Precision and Accuracy
Simultaneous 5-axis machining allows for continuous movement, eliminating errors caused by repositioning the workpiece manually. This leads to higher accuracy, essential for industries like aerospace, medical devices, and automotive manufacturing.
2. Complex Geometry with Fewer Setups
Unlike traditional 3-axis machining, which requires multiple setups for complex shapes, simultaneous 5-axis machining can complete parts in a single operation. This reduces human errors and ensures consistency in production.
3. Superior Surface Finish
By optimizing tool angles in real time, simultaneous 5-axis machining minimizes tool deflection and improves surface contact. This results in a smoother finish, reducing or even eliminating the need for additional polishing or finishing.
4. Shorter Machining Time
Since the machine continuously adjusts the tool position, it enables faster cutting speeds and reduces idle time. This leads to increased productivity and lower manufacturing costs.
5. Reduced Tool Wear and Longer Tool Life
The ability to approach the material at optimal angles reduces tool stress and vibration, extending tool life. This means fewer tool changes, lower maintenance costs, and more efficient machining.
6. More Efficient Material Removal
Simultaneous 5-axis machining enables optimal cutting paths, improving material removal rates. This is especially useful for industries working with hard-to-machine materials like titanium, stainless steel, and aerospace alloys.
Challenges of Simultaneous 5-Axis Machining
Despite its advantages, simultaneous 5-axis machining comes with certain challenges that manufacturers must consider.
1. High Initial Investment
Purchasing a 5-axis CNC machine requires a significant upfront cost. The machines are more expensive than traditional 3-axis machines, and the investment also includes specialized software and training for operators.
2. Complex Programming and Setup
Programming for simultaneous 5-axis machining is more advanced than for 3-axis or 3+2 machining. Operators need expertise in CAD/CAM software to generate precise toolpaths while avoiding collisions and tool deflection.
3. Increased Maintenance Requirements
Since simultaneous 5-axis machines have more moving parts, they require regular maintenance to ensure long-term performance. Neglecting maintenance can lead to misalignment and decreased accuracy.
4. Operator Skill Level
Due to its complexity, simultaneous 5-axis machining requires skilled machinists who understand multi-axis movement, tooling strategies, and programming intricacies.
Applications of Simultaneous 5-Axis Machining
Many industries benefit from simultaneous 5-axis machining, particularly those that require high precision and complex geometries.
1. Aerospace Industry
Aircraft components like turbine blades, structural parts, and engine housings require tight tolerances and complex shapes. Simultaneous 5-axis machining ensures high precision and lightweight construction for aerospace applications.
2. Medical Device Manufacturing
Medical implants, prosthetics, and surgical tools require ultra-precise machining with smooth surfaces. Simultaneous 5-axis machining allows for biocompatible materials to be shaped accurately for patient-specific implants.
3. Automotive Industry
High-performance automotive parts, including engine components, transmission systems, and custom car parts, benefit from the precision and efficiency of simultaneous 5-axis machining.
4. Mold and Die Manufacturing
Mold-making requires high-detail machining with smooth surfaces and precise contours. Simultaneous 5-axis machining ensures better quality molds with fewer secondary processes.
5. Energy Sector
Industries working with turbine components, nuclear reactor parts, and oil and gas equipment use simultaneous 5-axis machining to handle high-strength materials with intricate geometries.
How to Choose the Right 5-Axis Machine
1. Type of Machine Configuration
Choosing between table/table, head/head, or head/table configurations depends on the workpiece size, weight, and material.
2. CNC Controller Capabilities
A high-performance CNC controller is essential for smooth operation and accurate tool movements. Advanced real-time motion control improves precision.
3. Software Compatibility
Selecting the right CAM software ensures efficient toolpath programming and collision detection, optimizing the machining process.
4. Workpiece Complexity
For intricate components with undercuts and deep cavities, simultaneous 5-axis machining is ideal. However, simpler geometries may be machined more cost-effectively using 3+2-axis or standard 3-axis machining.
5. Budget and Production Needs
While the upfront cost of a 5-axis machine is high, it may provide long-term cost savings by reducing setup time, tool wear, and secondary processing.
Conclusion
Simultaneous 5-axis machining represents a major advancement in CNC technology, allowing manufacturers to produce complex parts with greater accuracy, efficiency, and quality. While the investment and expertise required are significant, the benefits in precision, speed, and versatility make it a valuable asset for industries demanding high-performance machining solutions.
As manufacturing technology continues to evolve, simultaneous 5-axis machining will remain at the forefront of innovation, helping businesses achieve higher productivity, reduced costs, and superior product quality.
