Introduction to Unidirectional Pig
Pipelines play a pivotal role in various industries, from oil and gas to water treatment, by transporting essential materials across vast distances. Maintaining the efficiency and safety of these pipelines is of paramount importance to prevent leaks, corrosion, and blockages. One of the most advanced methods used to maintain pipelines is the unidirectional pig This specialized tool is designed to move in only one direction, making it an essential part of pipeline maintenance, inspection, and cleaning operations.
The unidirectional pig is widely employed in a range of industries to ensure pipelines remain free of debris, scale, and other impurities, which can hinder their functionality. In this article, we will explore the unidirectional pig, its working mechanism, benefits, and its various applications in different sectors.
What is a Unidirectional Pig?

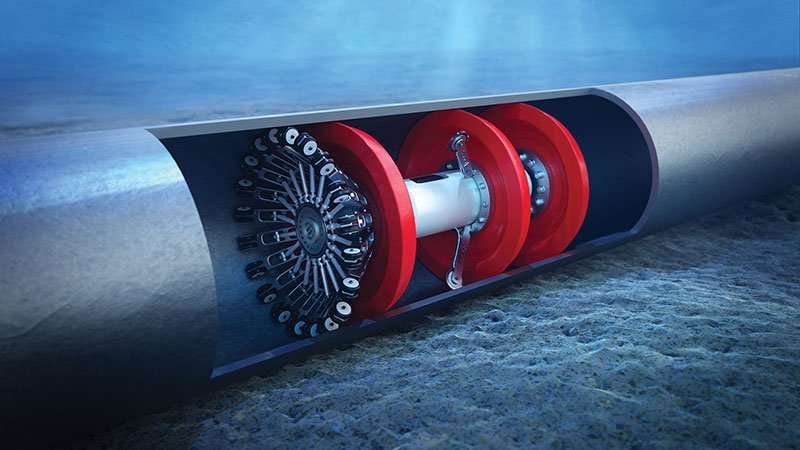

A unidirectional pig is a device used in pipeline maintenance that is designed to travel through the pipeline in a single direction. It is commonly used for cleaning, inspection, and product separation in pipelines that transport liquids, gases, and slurries. The pig works by utilizing the pressure differential created by the fluid flow within the pipeline, or by using external mechanical propulsion, to propel it in one direction.
The unidirectional pig comes in various forms depending on the application. It can be equipped with cleaning tools like brushes, scrapers, or other devices, as well as sensors for pipeline inspection. In its simplest form, the unidirectional pig is a cylindrical object, but modern versions can be more sophisticated, incorporating advanced technology to monitor pipeline conditions in real-time.
How Does Unidirectional Pigging Work?
The operation of a unidirectional pig is simple but highly effective. The pig is inserted into the pipeline at one end, typically through a pig launcher. The launcher is pressurized, which pushes the pig into the pipeline, where it is propelled by the pressure differential created by the fluid moving through the pipe. In some cases, additional external forces, such as compressed air or mechanical propulsion systems, can be used to move the pig through the pipeline.
The unidirectional pig is typically designed to be pulled back to the point of origin after completing its journey, unlike its bi-directional counterpart, which can return through the pipeline autonomously. Once the pig reaches the end of the pipeline, it enters a pig receiver, where it is safely captured.
Key Stages in the Unidirectional Pigging Process:
- Launching the Pig:
The pig is inserted into the pipeline via a pig launcher at the starting point of the pipeline. The launcher is sealed and pressurized to push the pig into the pipeline. - Pig Movement:
The pig moves through the pipeline in a single direction, using the flow of the transported fluid or an external pressure source to propel it forward.
Types of Unidirectional Pigs
Unidirectional pigs come in a variety of types, each designed for specific tasks within the pipeline system. The most common types of unidirectional pigs include:
1. Cleaning Pigs
These pigs are designed with brushes, scrapers, or other cleaning tools to remove buildup, scale, debris, and other contaminants from the inner walls of the pipeline. Cleaning pigs are often used in pipelines that transport liquids like crude oil, water, and chemicals, where debris and deposits can accumulate over time, potentially causing blockages or reducing flow efficiency.
2. Inspection Pigs
Inspection pigs are equipped with sensors, cameras, and other diagnostic tools to assess the condition of the pipeline. These pigs can provide real-time data on pipeline integrity, detecting issues like cracks, corrosion, or wear. Inspection pigs are invaluable for routine pipeline assessments, as they can help identify potential problems before they become critical.
3. Separation Pigs
These pigs are used to separate different products within a pipeline. In industries where multiple substances are transported in the same pipeline, separation pigs ensure that different products do not mix, ensuring purity and quality. For example, in the oil and gas industry, separation pigs can be used to prevent contamination between crude oil and other chemicals.
Advantages of Unidirectional Pigging
Unidirectional pigging offers numerous benefits to industries that rely on pipeline systems for the transport of fluids, gases, and other materials. Some of the key advantages of unidirectional pigging include:
1. Enhanced Pipeline Efficiency
By removing debris, scale, and buildup from the interior of pipelines, unidirectional pigs help maintain optimal flow rates. Clean pipelines are more efficient, as they reduce friction and allow fluids to flow without obstruction, which can lead to energy savings and better overall performance.
2. Cost-Effective Maintenance
Unidirectional pigging is a cost-effective maintenance solution compared to other pipeline cleaning methods. It requires fewer resources and personnel, and it can be completed more quickly than other methods. Furthermore, regular pigging extends the lifespan of pipelines by preventing corrosion, blockages, and other forms of damage, which can result in expensive repairs or replacements.
3. Improved Pipeline Integrity
Unidirectional pigging allows for regular inspection of the pipeline’s condition. Pigs equipped with sensors can detect cracks, corrosion, and other structural issues, providing valuable data that can be used to prevent major pipeline failures. Early detection of problems can help operators take proactive measures, reducing downtime and preventing costly repairs.
4. Non-Invasive Operation
Unlike other cleaning and inspection methods, unidirectional pigging is non-invasive and requires minimal disruption to the pipeline system. The pig is inserted and retrieved through designated launchers and receivers, without the need for extensive disassembly or interruption to the pipeline’s operation. This makes it an ideal solution for pipelines that are in continuous use.
Conclusion
Unidirectional pigging is a crucial method for ensuring the efficient and safe operation of pipelines across various industries. From cleaning and inspection to product separation and batching, the unidirectional pig offers a reliable solution to maintain pipeline integrity and functionality. With its cost-effectiveness, efficiency, and ability to prevent costly pipeline failures, unidirectional pigging plays an indispensable role in industries such as oil and gas, water treatment, food and beverage, and pharmaceuticals. By adopting unidirectional pigging systems, companies can reduce downtime, improve operational efficiency, and protect their valuable pipeline infrastructure for years to come.
