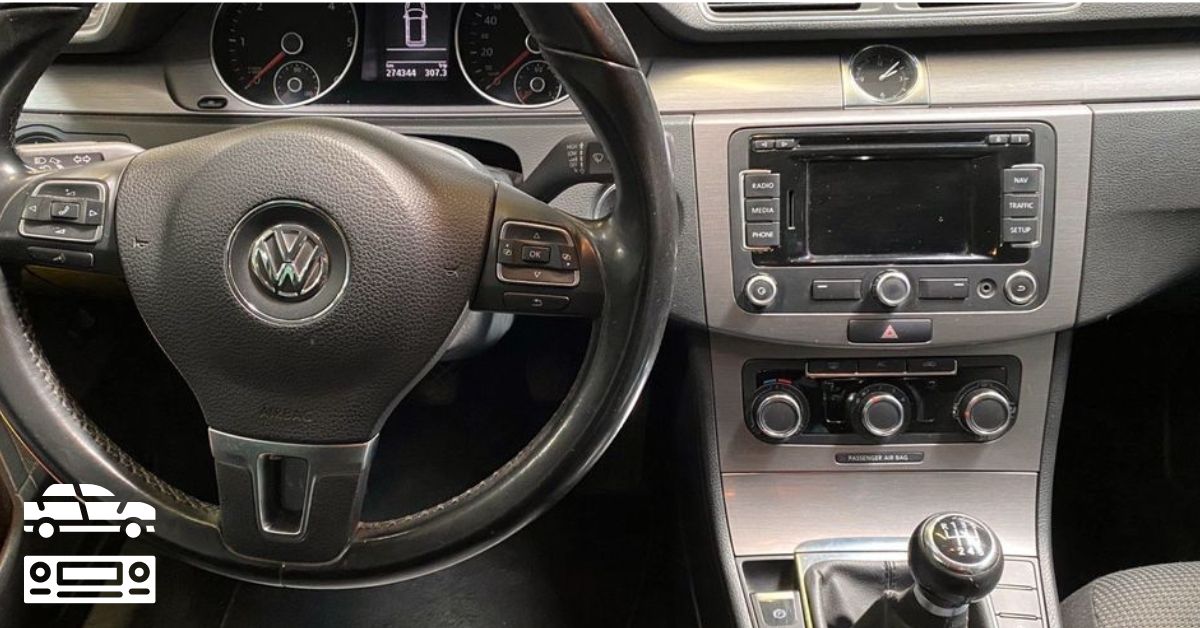

If you’re looking to upgrade the radio in your VW Passat B7 (2010-2014), the process can be made simple with the right tools and the appropriate VW Passat B7 Steering Wheel Control with Double DIN Radio Installation Kit. This kit includes everything you need to swap out the factory radio while retaining the steering wheel controls, ensuring a smooth and professional-looking installation.
Why Do You Need a Radio Installation Kit?
Modern vehicles, like the VW Passat B7, come with highly customized dashboards that require specific components to fit new radios. The radio installation kit is essential for ensuring the new radio integrates seamlessly with your vehicle’s dashboard and electrical system. In addition, if your Passat has steering wheel controls, you’ll need a special adapter to maintain these functions with the new radio.
The VW Passat B7 Steering Wheel Control with Double DIN Radio Installation Kit provides all the necessary components, including the fascia plate, wiring adapters, and antenna adapters, to ensure your new radio fits perfectly and functions with the steering wheel controls.
Explore the range of installation kits tailored for specific car models at Autoradio Einbauset.
What’s Included in the VW Passat B7 Installation Kit?
Here’s what you’ll find in the VW Passat B7 Steering Wheel Control with Double DIN Radio Installation Kit:
1. Double DIN Fascia Plate
This black Double DIN fascia plate ensures that your new radio fits perfectly into the dashboard, maintaining a factory-like appearance. It includes a metal frame, decorative trims, mounting brackets, and screws for easy installation.
2. Antenna Adapter
The DIN Fakra Z antenna adapter connects your new radio to the vehicle’s antenna system, ensuring proper reception. For radios with ISO connections, the kit also includes a DIN to ISO antenna adapter.
3. Steering Wheel Control Adapter
If your VW Passat B7 is equipped with steering wheel controls, the kit provides an adapter that allows the new radio to communicate with the steering wheel buttons. This means you can continue to adjust the volume, change tracks, and control other radio functions without taking your hands off the wheel.
4. Wiring Adapter for CAN BUS
The kit includes a CAN BUS wiring adapter that simplifies the installation process by connecting the new radio to the factory wiring harness. This ensures that the power, speakers, and steering wheel controls all work seamlessly with the new head unit.
For more information on wiring adapters, visit Autoradio Adapter.
How to Install the New Radio in Your VW Passat B7
Here’s a step-by-step guide to installing your new radio with the VW Passat B7 Steering Wheel Control with Double DIN Radio Installation Kit:
Step 1: Disconnect the Battery
Before starting the installation, disconnect the vehicle’s battery to prevent any electrical issues.
Step 2: Remove the Factory Radio
Use a radio removal tool to safely remove the factory radio from the dashboard. Once removed, disconnect the wiring harness and antenna cable from the back of the unit.
Step 3: Install the Fascia Plate
Fit the Double DIN fascia plate into the dashboard opening, ensuring it snaps securely into place. This plate will hold the new radio and provide a clean, finished look.
Step 4: Connect the Wiring Adapter
Use the CAN BUS wiring adapter included in the kit to connect the factory wiring to the new radio. This adapter allows all the necessary functions, including power, speaker connections, and steering wheel controls, to work seamlessly.
Step 5: Attach the Antenna Adapter
Connect the DIN Fakra Z antenna adapter to the vehicle’s antenna system. If the new radio has an ISO antenna connection, use the DIN to ISO adapter to complete the connection.
Step 6: Connect the Steering Wheel Control Adapter
For vehicles with steering wheel controls, connect the steering wheel control adapter between the new radio and the factory wiring. This ensures that all steering wheel functions are retained with the new unit.
Step 7: Install the New Radio
Slide the new Double DIN radio into the fascia plate and secure it using the brackets and screws provided. Make sure all wiring connections are secure and properly aligned.
Step 8: Test the System
Reconnect the car battery and test the new radio to ensure that everything is functioning properly, including the radio signal, steering wheel controls, and other features.
Step 9: Reassemble the Dashboard
Once satisfied with the performance of the new radio, reassemble the dashboard and ensure the fascia plate and radio are securely fitted.
Important Notes for Installation
- The VW Passat B7 Installation Kit is designed for vehicles with factory radios such as RCD200, RCD300, RCD310, RCD500, or RCD510 that have a Quadlock 40-pin connector.
- The kit is not suitable for vehicles equipped with a Dynaudio sound system.
- When installing a Kenwood radio, make sure to check compatibility with steering wheel controls using the specific Kenwood adapter.
Conclusion: DIY Radio Upgrade Made Easy
Upgrading the radio in your VW Passat B7 can drastically improve your driving experience by adding modern features such as Bluetooth, Apple CarPlay, and Android Auto. With the right installation kit, including the VW Passat B7 Steering Wheel Control with Double DIN Radio Installation Kit, the process becomes easy and manageable for DIY enthusiasts.
