When you step into an elevator, it’s easy to take for granted the sophisticated engineering behind the smooth ride. Elevators are complex machines made up of several interconnected systems working together to ensure safety, comfort, and efficiency. Whether you’re a building owner, an elevator technician, or just a curious mind, understanding the essential parts of an elevator can offer valuable insight into how vertical transportation works.
The Elevator Car: Where Passengers Ride
At the heart of every elevator system is the elevator car — the compartment that carries passengers or freight between floors. This car is carefully designed with materials that offer durability and sound insulation. Inside, you’ll find interior panels, lighting systems, emergency communication devices, and ventilation fans. The elevator car rides up and down on guide rails to ensure stability and a smooth ride.
Elevator Hoistway and Shaft Components
The hoistway, also known as the elevator shaft, is the vertical passage that houses the elevator car and counterweight. Within this shaft, you’ll find essential components such as guide rails, buffers, and limit switches. These elements are vital for guiding the elevator, absorbing shock, and ensuring safe operation. The hoistway must be properly aligned and free of obstructions to prevent breakdowns or misalignment.
Elevator Machine Room and Motor System
Another critical part of an elevator system is the machine room, typically located above or below the shaft. This space houses the elevator motor, controller, and drive system. In traditional traction elevators, the motor powers a sheave that moves the ropes connected to the car and counterweight. In hydraulic elevators, you’ll find a hydraulic pump instead. These systems are responsible for lifting and lowering the elevator with precision and control.
Elevator Control System and Safety Mechanisms
The elevator control panel is the brain of the operation. It processes commands, controls car speed, and monitors positioning. Safety is a top priority in elevator design, which is why there are multiple safety mechanisms in place, including emergency brakes, overspeed governors, and door interlocks. These components work together to protect passengers during unexpected situations or system failures.
The Role of the Counterweight in Elevator Systems
One of the most important but often overlooked components of an elevator is the counterweight. Found in traction elevator systems, the counterweight balances the weight of the elevator car, making it easier for the motor to lift and lower the car efficiently. This not only reduces energy consumption but also minimizes wear and tear on the motor and cables. The counterweight moves in the opposite direction of the elevator car inside the shaft, helping to maintain equilibrium during operation.
Elevator Doors: Automatic Systems and Safety Sensors
When people think about elevator parts and functions, doors are often the first thing that comes to mind. Elevator doors consist of two main parts: the car door and the landing door. The car door is attached to the elevator car and moves with it, while the landing doors are fixed at each floor. These doors are equipped with automatic door operators, sensors, and door safety edges to prevent accidents. Modern elevators often include infrared or pressure-sensitive sensors that reopen the doors if they detect motion, ensuring passenger safety.
Elevator Control Panel and Call Buttons
Inside the car and on every floor, you’ll find elevator call buttons and control panels. These devices allow users to interact with the elevator system. The control system processes floor selections, controls door operations, and communicates with the motor. In more advanced systems, destination dispatch technology is used to group passengers traveling to similar floors, reducing wait times and improving traffic flow in high-rise buildings.
Emergency Systems: Alarms, Backup Power, and Communication
No discussion of the parts of an elevator would be complete without touching on its emergency systems. In the event of a power failure or mechanical issue, elevators are equipped with battery backups, alarms, emergency lights, and two-way communication systems that connect to building security or emergency responders. These features ensure that passengers are safe and informed during any kind of malfunction or delay.
Different Types of Elevators and Their Unique Components
Elevator components can vary depending on the type of elevator system. For example:
- Traction elevators use ropes, sheaves, and counterweights.
- Hydraulic elevators use pistons and hydraulic fluid.
- Machine-room-less (MRL) elevators house equipment within the hoistway, saving space.
- Freight elevators have heavy-duty parts for transporting goods.
Each system has a different set of mechanical and electronic parts optimized for its specific function, speed, and load requirements.
Why Elevator Components Matter for Safety and Maintenance
A modern elevator is more than just a box that moves vertically—it’s a finely tuned system of mechanical, electrical, and safety components. Whether you’re involved in building design, elevator maintenance, or just want to learn more about the technology around you, knowing the parts of an elevator and how they function is essential. Regular maintenance and inspections of these components ensure not just compliance with safety codes, but also a smooth, reliable ride for every user.
Common Elevator Maintenance Issues Related to Elevator Parts
Understanding the parts of an elevator isn’t just helpful from an educational perspective—it plays a crucial role in preventive elevator maintenance. Many common elevator issues stem from wear and tear on essential components. For instance, worn-out rollers, loose guide rails, or malfunctioning door operators can lead to jerky movements or unexpected stops. Regular inspections of the motor system, control panels, brakes, and cables help reduce downtime and costly repairs. Maintenance teams should also monitor oil levels in hydraulic elevators and the tension in hoist ropes for traction systems. Well-maintained parts not only enhance performance but also extend the lifespan of the elevator system.
Elevator Diagrams and System Layout

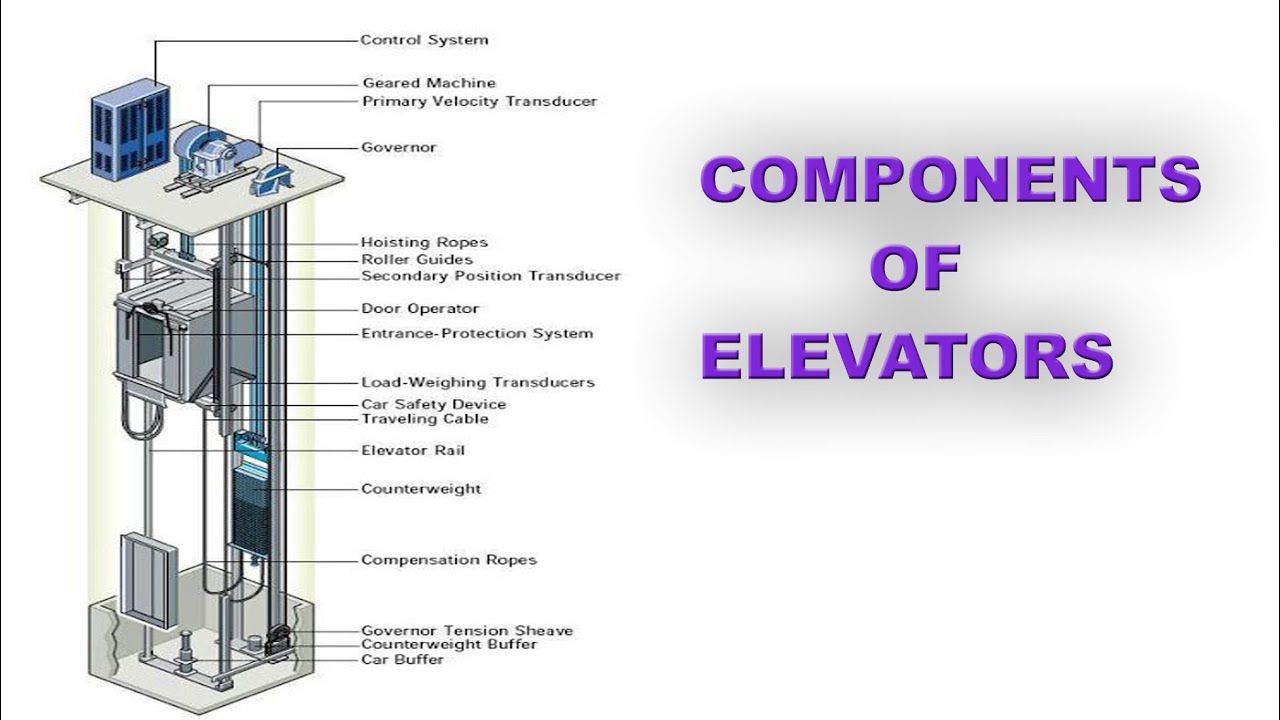

For those interested in the technical layout, reviewing an elevator system diagram is one of the best ways to understand the relationship between all the components. These diagrams typically include the car, shaft, counterweight, motor, controller, drive system, doors, and landing mechanisms. They visually represent how power is transmitted, how the elevator is stabilized, and where safety mechanisms are installed. Diagrams are especially useful for elevator technicians and students studying mechanical systems.
Future Trends in Elevator Technology and Components
The future of elevator design is moving towards smarter, more efficient systems with fewer mechanical parts and more electronic intelligence. Innovations such as smart sensors, AI-powered control systems, touchless elevator panels, and energy-efficient motors are transforming how elevators operate. These new technologies are making traditional elevator parts more compact, durable, and intelligent. For example, gearless traction motors are now replacing older geared models for quieter and more energy-efficient performance. Understanding today’s components will help stakeholders adapt to tomorrow’s smart vertical transport solutions.
Conclusion
From the motor room to the control panel, the parts of an elevator form a complex and highly coordinated system designed to move people safely and efficiently. Whether you’re involved in architecture, construction, facilities management, or elevator maintenance, knowing how these components work together is essential. Elevators are one of the most used yet least understood machines in modern infrastructure—and their parts play a crucial role in shaping our daily mobility experience.
