Water supply is a crucial need of society today. Gasses are also transported through pipelines after being converted into fluid. But the critical thing that controls all the fluid movement is the ball valve, which is made of stainless steel.
We have been using ball valves since 1871 when they were invented. Since then, many ball valves have taken their place, but the three-way valve has its unique importance, which we will discuss further.
Before discussing other factors, let’s talk about the 3-way ball valve. This valve has three ports and can control water movement in two ways. You can figure out through the image that if it is intended to move water on either side, valve movement automatically blocks the other side.
This blog will focus on the work, advantages, and other essential factors of the 3-way ball valve. Let’s discuss.
TYPES & WORKING
There are mainly 2 types in 3 way ball valve:
- T-Port 3-Way Ball Valve
- L-Port 3-Way Ball Valve

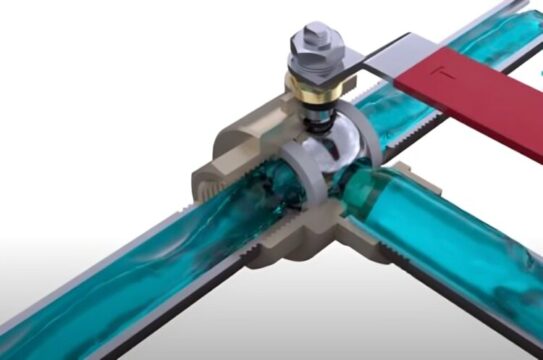

In the T-port of the 3-Way Ball Valve, water flows from one point to another two pipelines. It can release fluid in both ways at the same time. It can also restrict one side if we want to.

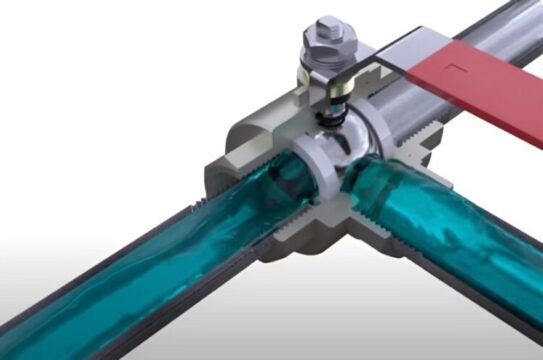

In the L-port of a 3-way ball Valve, water flows from one point but can only move fluid to any single side. It can be any side, right or left.
Both ports are used at several joints in industry or household where they are used commonly.
ADVANTAGES/DISADVANTAGES
Using a 3-way ball valve in pipelines has several advantages and disadvantages. Let’s discuss thoroughly how 3-way valves affect the fluid flow badly and also in a good way.
Advantages
1. Versatile Flow Control:
3-way ball valves provide multiple flow path options, enabling mixing, diverting, or shut-off operations within a single valve body.
2. Space-saving Design:
Combining multiple functions into one valve body helps conserve space in piping systems, especially in compact or confined spaces.
3. Reduced Leak Points:
By minimizing the number of potential leak points, 3-way ball valves enhance system reliability and minimize the risk of fluid leakage.
4. Cost Savings:
Installing a single 3-way ball valve instead of multiple valves and fittings can save equipment, installation labor, and maintenance costs.
5. Efficient Flow Control:
With their quarter-turn operation and smooth flow characteristics, 3-way ball valves offer precise and efficient flow control, allowing quick adjustments in fluid direction or flow rates.
Disadvantages
1. Complexity:
3-way ball valves are more complex in design compared to traditional 2-way ball valves, leading to higher manufacturing costs and potentially increased maintenance requirements.
2. Flow Restrictions:
Certain configurations of 3-way ball valves, especially the T-port design, can introduce flow restrictions, resulting in decreased flow rates or increased pressure drop across the valve.
3. Potential Leakage:
The additional ports and seals in 3-way ball valves increase the risk of leakage compared to simpler valve designs, requiring careful installation and maintenance to minimize the risk.
HOW TO BUY?
Follow these simple steps for a seamless buying experience:
- Conduct thorough research to identify reputable suppliers or manufacturers offering stainless steel 3-way ball valves. Utilize online platforms, industry forums, and customer reviews to gather information and compare options.
- Determine your requirements, including valve size, port configuration (T-port or L-port), pressure rating, and material specifications. Once you clearly understand your needs, reach out to the chosen supplier or manufacturer to inquire about product availability, pricing, and delivery options. Consider requesting quotes from multiple sources to ensure competitive pricing.
- Please place your order through the supplier’s preferred method, whether online via their website, over the phone, or through email.
Ensure clear communication regarding shipping details and any additional requirements. With these steps, purchasing a stainless steel 3-way ball valve can be a straightforward and efficient process tailored to your needs.
Wrap-up
Although options are available for 2-way and one-way ball valves, the 3-way valve has unique usefulness. It’s a matter of choice and engineering of the plumber or fitter to determine what kind will suit perfectly.
You can choose either L-port or T-port for their respective benefits.
