In modern industries, fume extraction systems are no longer standalone solutions. Their integration with HVAC systems has become critical for maintaining safety, clean air, and regulatory compliance. From point extraction units, extraction arms, and portable units to centralized ventilation systems and advanced filtration technologies, these systems have become indispensable across various industries handling hazardous fumes and particles. Below, we explore five key reasons why fume extraction systems have become an essential part of HVAC systems, along with an overview of the specific products and applications where they are most commonly used.
Comprehensive air quality control: Point extraction’s role in HVAC
Point extraction systems are the cornerstone of effective fume management in industries where hazardous emissions must be quickly captured at the source. For example, in welding shops, chemical processing plants, and electronics assembly lines, these systems are used to capture dangerous fumes like hexavalent chromium, lead particles, volatile organic compounds (VOCs), and ozone directly at the emission point.
How it works
A point extraction arm or hood is positioned over or near the source of emission. As fumes are produced, they are immediately sucked into the arm via high-efficiency exhaust fans. These fumes are then channeled through ductwork integrated into the facility’s HVAC system, where they pass through multiple stages of filtration—such as HEPA filters for fine particulate matter or activated carbon filters for VOCs. Clean, filtered air can then be either recirculated back into the workspace or vented outside, depending on the system configuration.
Applications
- Welding: Capture of welding fumes containing metallic oxides (e.g., iron, aluminum, manganese).
- Chemical labs: Removal of toxic gases and vapors, such as chlorine and ammonia.
- Pharmaceuticals: Extracting dust particles and solvents from drug production processes.
Regulatory compliance: Extraction systems as part of air quality standards
Regulatory compliance is another driving force behind the integration of fume extraction systems with HVAC. Agencies such as OSHA and the EPA have strict limits on exposure to airborne contaminants, often outlined in Permissible Exposure Limits (PELs). For example, OSHA standard 1910.1026 governs exposure to hexavalent chromium, a common byproduct in welding stainless steel, which poses serious health risks like lung cancer.

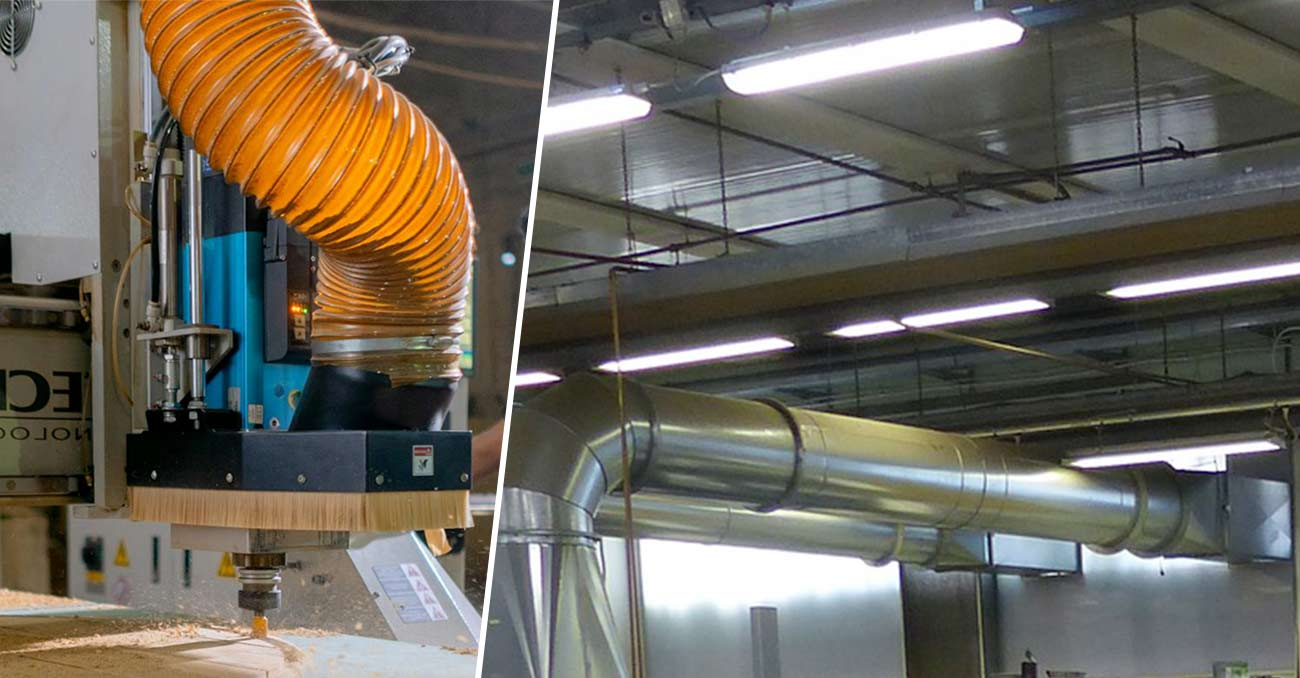

By incorporating fume extraction systems into the facility’s ventilation infrastructure, industries can ensure they meet these safety regulations. For larger industrial operations, centralized extraction systems are often installed to manage fumes across multiple workstations.
How it works
Centralized systems use high-efficiency extraction fans that connect to several point extraction arms or ducted hoods. These systems are built into the HVAC framework, allowing for centralized control over both temperature and air quality. As the contaminated air is extracted, it passes through filtration stages—often involving electrostatic precipitators or plasma filters—which neutralize harmful particles and gases before the air is recirculated or safely released outdoors.
Applications
- Automotive workshops: Capture of carbon monoxide and nitrogen oxides from exhaust systems is crucial for workshop security.
- Chemical manufacturing: Removal of benzene, acetone, and other VOCs from industrial processes.
- Metal fabrication: Control of lead, nickel, and cadmium fumes during metal cutting and grinding.
Long-term cost savings: Protecting both HVAC systems and industrial equipment
Fume extraction systems play a vital role in reducing long-term operational costs, not only by protecting worker health but also by safeguarding the facility’s HVAC system and equipment. Over time, fumes from processes like laser cutting, grinding, or soldering can introduce metallic dust, toxic particles, and acidic gases into the air. If these fumes are not captured at the source, they can settle inside HVAC ductwork, leading to costly contamination and maintenance issues.
How it works
Installing fixed extraction units with self-cleaning filters ensures that contaminants are captured before they enter the HVAC system. Electrostatic precipitators and multi-stage filter systems can remove fine particulates and neutralize harmful gases. These systems also prevent buildup inside HVAC ducts, reducing the need for frequent cleaning and extending the lifespan of both the extraction system and the HVAC infrastructure.
Applications
- Electronics manufacturing: Prevention of fine dust and soldering fumes from damaging sensitive circuit boards.
- Metal processing: Removal of metallic oxides to prevent corrosion in HVAC systems.
- Food production: Control of flour dust and additive powders to avoid contamination in processing equipment.
Enhancing workplace comfort and efficiency: Coordinated air management
Fume extraction systems integrated with HVAC are not just about regulatory compliance; they also greatly improve worker comfort and productivity. Poor air quality, caused by lingering fumes and particulates, can result in respiratory irritation, headaches, and fatigue, all of which reduce productivity and increase absenteeism.
How it works: By combining high-capacity exhaust fans, adjustable extraction arms, and automated HVAC controls, fume extraction systems ensure that air is continuously refreshed and conditioned to meet comfort standards. Variable air volume (VAV) systems adjust airflow based on real-time fume detection, providing on-demand extraction when work is being performed and reducing energy consumption when it’s not.
Applications
- Soldering: Use of bench-top extraction units in electronics assembly for clean air during fine detail work.
- Paint spraying: Coordination of spray booth ventilation systems with HVAC to remove toxic paint fumes and control airflow in vehicle- and industrial workshops.
- Printing: Extracting solvent fumes from large-scale printing presses for both air quality and temperature control.
Environmental impact: Reducing emissions through fume extraction
Fume extraction systems are essential not only for workplace safety but also for minimizing the environmental impact of industrial processes. Many facilities release greenhouse gases and hazardous air pollutants (HAPs) as byproducts of manufacturing, which contribute to air pollution and climate change.
How it works
Fume extraction systems, integrated with HVAC units, help capture and filter these pollutants before they are released into the atmosphere. Activated carbon filters are often used to absorb VOCs and plasma filtration systems can neutralize harmful gases like nitrogen dioxide. In industries where emissions control is critical, such as automotive production or metal foundries, these systems play a key role in reducing a company’s carbon footprint.
Applications
- Foundries: Extracting and filtering sulfur dioxide and other byproducts from molten metal processing.
- Plastic manufacturing: Removal of ethylene and other plastic off-gassing emissions.
- Textile dyeing: Extracting chemical dyes and VOCs released during the coloring process.
Fume extraction and HVAC systems, a powerful partnership
Fume extraction systems have evolved to become an integral part of HVAC and industrial ventilation systems, ensuring not only regulatory compliance but also protecting workers, reducing operational costs, and improving overall environmental performance. Whether it’s through point extraction arms, portable units, or centralized systems, these solutions work hand in hand with HVAC technology to create safer, cleaner, and more efficient industrial environments. Investing in advanced fume extraction and filtration technology is no longer optional—it’s a necessity for any business that values sustainability, worker safety, and long-term operational efficiency. Read more about local exhaust ventilation.
