It is pretty evident from nature that weakness is avoided by internal solid structures that hold up the structure. Animals have bones; plants have cell walls. For a structure to stand upright, a skeletal system is essential.
Similarly, 3D printed models are given infills to improve their strength without wasting printing material. They provide the models with a solid and sturdy feel and prevent damage from handling. But infills must be given in a way that does not damage the printed models or cause weakness.
What are infills?
The inside structure or pattern used to fill the space inside a 3D-printed object is known as infill. It takes a lot of time and materials to print a solid object, which may not always be necessary, especially for objects that don’t need to be entirely solid. Infill balances the need for sufficient material to maintain the object’s structural integrity with minimum print time and material consumption.
The infill density or percentage, which controls how much of the interior space will be filled with material during 3D printing, can be specified by users. A network of lines, grids, or other geometric structures that form a supporting framework inside the object is frequently used to symbolize the infill.

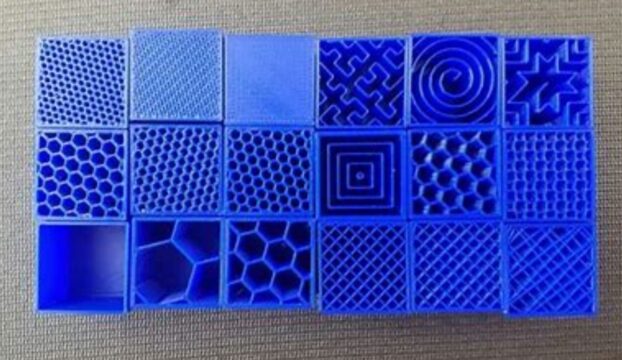

- Grid: Regularly spaced horizontal and vertical lines form a grid pattern that gives a thing a lattice-like internal structure.
- Honeycomb: Hexagonal cells make up the honeycomb pattern, which provides good strength while using less material.
- Triangles: Triangular infill designs use interconnected triangles to fill the interior area effectively.
- Rectilinear: Straight lines parallel to each other in the X and Y dimensions make up the rectilinear infill.
- Gyroid: The gyroid pattern is an elaborate and complex design that offers good strength and reduces print time.
- Voronoi: The Voronoi pattern produces uneven, organic-looking cells that efficiently distribute the material.
The infill pattern and density choice depend on the specific requirements of the 3D-printed object. For objects that require higher structural integrity, a higher infill percentage (e.g., 50% or more) and a denser infill pattern are generally used. A lower infill percentage (e.g., 10% to 20%) with a lighter infill pattern may be sufficient for objects that do not require much strength.
Adjusting the infill settings allows 3D printing enthusiasts to balance strength, print time, and material consumption, making printing more efficient and cost-effective.
What are the Most Common Infill-Related Problems in 3D Printing?
- Weak or brittle prints: Prints that lack structural integrity might be weak or brittle due to insufficient infill density or poor pattern choice. Parts may break quickly under stress as a result of this.
- Insufficient strength: Choosing an infill percentage that is too low or utilizing the wrong infill patterns can produce prints that aren’t strong enough for the job.
- Surface quality problems: Incorrect infill settings may result in observable surface flaws or rough textures on the printed object’s exterior.
- Printing time and material usage: High infill percentages can drastically lengthen printing times and use more material, which makes the process ineffective.
- Printing cost: High infill percentages can also drive up printing costs because they require more material.
- Issues with heat retention and cooling: Some infill patterns may cause insufficient heat dissipation, which can cause issues with layer adhesion and warping.
- Print stability and support: Support structures that don’t have enough infill may collapse while being printed, producing unsuccessful prints.
- Print transparency: Infill patterns can impact printed items’ transparency, particularly when employing translucent or transparent materials.
- Model Accuracy: Models that don’t precisely reflect the intended design may result from insufficient infill density.
What Are the Different Ways to Fix Infill Problems?
- Changing infill patterns: Altering the infill pattern can improve print quality and solve infill issues. Selecting a more robust infill pattern, such as the honeycomb or gyroid, can improve structural integrity in prints that show surface flaws or brittleness. Similarly, choosing a denser infill pattern, such as a grid or triangles, might solve concerns with warping or curling brought on by insufficient strength.
Users can find the ideal ratio of material usage and print time, resulting in more dependable and long-lasting 3D printed things, by tweaking the infill parameters and experimenting with various patterns. Changing the infill pattern in 3D printing can help reduce print weight for lightweight applications, enhance print transparency for translucent materials, improve print stability and support structures for complex designs, and optimize heat dissipation for better layer adhesion.
Moreover, adjusting the infill pattern can minimize print costs, decrease print time for time-sensitive projects, and address printing issues related to overheating or excessive cooling, resulting in more successful and efficient 3D prints. Using infill patterns designed specifically for aesthetic purposes is not advised when you require your 3D model to have strength.
- Adjusting the Printing Speed: The print speed must be adjusted to avoid 3D printing infill issues. Reducing the print speed might enhance the print’s quality if infill problems are noticed, such as weak prints or poor surface quality. Slower print speeds produce stronger and more dependable infill structures because they improve the extruded material’s ability to fuse.
On the other hand, raising the print speed might help hasten the printing process if there are issues with print time and material utilization. Finding the ideal balance is vital since printing too fast might result in errors and poor layer adhesion, weakening the printed product’s stability and strength.
Modifying print speed according to the particular infill pattern can improve outcomes. A slower print speed can better retain detail for complex infill patterns like gyroid. Meanwhile, a slightly faster print speed might be appropriate for straightforward designs like grid or rectilinear.
Achieving successful 3D prints with strength and structural integrity requires routinely fine-tuning print speed and monitoring the printing procedure.
- Adjusting Infill Settings in Slicer: Adjusting infill settings in the slicer is a powerful tool to optimize 3D prints. Modifying the infill percentage is key when encountering issues with infill problems like weakness or excessive material usage. A higher infill percentage, such as 50% or more, can enhance strength, making the object more robust. Conversely, reducing the infill percentage to 10%-20% saves time and material for less demanding applications.
The choice of infill pattern also impacts the print’s performance. Selecting dense patterns like honeycomb or gyroid for objects requiring superior strength can reinforce the structure. On the other hand, for lightweight applications, using a lighter infill pattern like a grid or triangle is more suitable.
Besides, users can modify reinforcement by controlling the infill density in particular model regions using the slicer’s advanced options. By adjusting these parameters, 3D printing aficionados may balance strength, print time, and material usage, resulting in high-quality prints personalized to their specific needs.
- Using the right filament diameter: To avoid issues with infill during 3D printing, choosing the right filament diameter is essential. The accuracy of the extrusion and the print quality can be impacted when the real filament diameter does not match the one specified in the slicing software.
Over-extrusion during the infill process may happen if the filament diameter is bigger than anticipated. This could result in infill structures that bulge or are uneven, reducing the object’s strength and finish. On the other hand, if the filament diameter is lower, under-extrusion may occur, resulting in a weak and brittle infill.
Accurate filament diameter measurement and 3D printer calibration are critical to preventing these problems. Consistently checking the filament diameter and updating the slicing software with the appropriate value promotes reliable extrusion, resulting in well-organized, robust, and useful infill patterns in the 3D printed items.
- Using Higher Quality Filaments: To avoid infill issues and improve the overall 3D printing experience, it is important to use higher-grade filaments. Cheap or poor-quality filaments could include impurities, inconsistent diameters, or poor adhesion qualities, which could cause various infill problems. The exact tolerances and improved quality control guarantee a consistent and uniform diameter to create high-quality filaments. This enhances the accuracy and dependability of extrusion during printing, resulting in well-formed and sturdy infill structures.
High-quality filaments are also made using better materials, which enhances their adhesion and interlayer bonding capabilities. The structural integrity of the printed product is improved since this lowers the possibility of delamination or weak layer adhesion in infill zones.
Also, premium filaments frequently have lower moisture contents, which reduces the possibility of bubbling, warping, or other flaws that could impair the performance of infills.
Higher-quality filament purchases may be slightly more expensive but considerably lower the likelihood of infill-related issues, producing better and more dependable 3D-printed things.
Which is the best 3D modeling and Printing software?
There are alot of 3D design software available that you can use to create your designs and a good example is SelfCAD. The software has a simple user-friendly interface that makes it easier for anyone to get started easily. You can use to not only create 3D models but also prepare them for 3D printing without having to switch to a different program.
One of its standout features is its comprehensive set of tools for both traditional 3D modeling and organic sculpting. You can create both simple and complex models for engineering, architectural purposes etc, while also embracing the artistic possibilities through sculpting features. This versatility makes it a valuable tool for a wide range of applications, from engineering and architecture to animation and game design. SelfCAD also has an integrated online slicer that is compatible with most of the common FDM 3D printers to ensure that you prepare them for 3D printing with ease. Additionally, the software offers a library of pre-made 3D models that users can use as a starting point for their own creations. It also provides step-by-step tutorials and learning resources to help users, especially beginners, get the most out of the software.
Solving infill issues for stronger 3D prints
Infill problems in 3D printing refer to issues related to the interior structure of printed objects. Common problems include weak or brittle prints, inadequate strength, surface imperfections, warping, and curling. The choice of infill percentage and pattern significantly affects the object’s structural integrity, print time, and material usage. Adjusting infill settings, using the correct filament diameter, and opting for higher quality filaments can help prevent these issues and produce more reliable 3D printed objects.
