Deterministic Finite Automata (DFA) serves as a foundational pillar in the Theory of Computation, providing a framework for understanding and designing systems that perform computational tasks with precision and efficiency. This comprehensive guide explores practical DFA examples to elucidate their role and applications, aiming to offer insights for students, educators, and professionals in computer science.
Examples of DFA are almost Similar to NFA examples but there is little difference in transitions between DFA and NFA. Let us understand the topic of DFA examples in detail.
The Building Blocks of DFA
To fully grasp the concept of DFA, it’s essential to understand its five primary components:
- States: The various conditions in which a DFA can exist.
- Alphabet: A finite set of symbols that the DFA can process.
- Transition Function: A rule that dictates how the DFA moves from one state to another based on the input symbol.
- Start State: The initial condition of the DFA before processing any input.
- Accept States: The set of states in which the DFA considers the input string accepted.
DFA Example: Binary Strings Ending in ’01’
Imagine we want to design a DFA that accepts all binary strings (strings composed of 0s and 1s) that end in ’01’. This means that if you feed the DFA a binary string, it should end in the specific pattern ’01’ for the DFA to accept it.
Components of the DFA:
- States: Let’s designate three states in this DFA:
- q0: The initial state (also serves as a state indicating that we haven’t seen the pattern ’01’ yet).
- q1: Indicates that we’ve seen a ‘0’ and are waiting for a ‘1’ to complete the pattern.
- q2: The accept state, indicating that the last two symbols read were ’01’.
- Alphabet: {0, 1}, since we’re dealing with binary strings.
- Transition Function: Rules that dictate how we move from one state to another based on the current input symbol.
- Start State: q0.
- Accept States: {q2}, meaning the DFA accepts the input if it ends in the state q2.

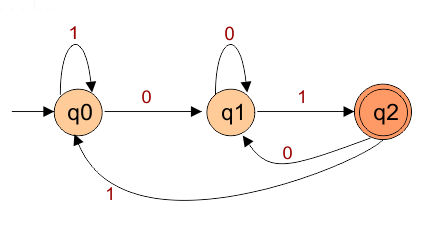

DFA Transition Table:
The transition table defines how we move between states based on the current input (either ‘0’ or ‘1’):
| Current State | Input | Next State |
| q0 | 0 | q1 |
| q0 | 1 | q0 |
| q1 | 0 | q1 |
| q1 | 1 | q2 |
| q2 | 0 | q1 |
| q2 | 1 | q0 |
How the DFA Works:
- Starting at q0: If we read a ‘0’, we move to q1, hoping to find a ‘1’ next to complete our pattern. If we read a ‘1’, we stay in q0 since ‘1’ cannot be part of the ending ’01’ if it’s at the beginning or middle of the string.
- In q1 (after reading a ‘0’): If the next symbol is ‘0’, we stay in q1, still looking for a ‘1’ to complete the pattern. If the next symbol is ‘1’, we move to q2, having successfully found a string ending in ’01’.
- In q2 (pattern ’01’ found): Any further input requires the DFA to anticipate new occurrences of the pattern. If we read a ‘0’ next, we move back to q1 to see if this ‘0’ starts a new pattern. If we read a ‘1’, we go to q0 because ‘1’ following ’01’ breaks our needed pattern, and we start looking for a new ’01’ sequence.
Whether you’re an aspiring computer scientist, a seasoned programmer, or someone fascinated by the intricacies of computation, understanding DFAs is an invaluable asset. Thanks to all online AI tools and websites especially cs taleem for contributing it. Let’s understand the differences between DFA and NFA.
