The demand for reliable, lightweight, and long-lasting energy storage has never been higher. From recreational vehicles to renewable energy systems, the 12 volt lithium battery has become the preferred choice for many industries and individuals. With advancements in lithium battery chemistry, users now enjoy superior performance, greater efficiency, and significantly longer service life compared to older battery technologies.
This article takes a deep dive into the fundamentals of 12V lithium batteries, their advantages, key applications, and important factors to consider before making a purchase.
What Is a 12 Volt Lithium Battery?

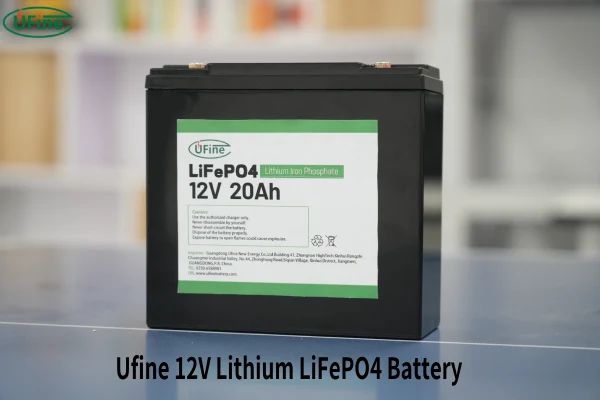

A 12 volt lithium battery is a rechargeable battery pack made up of individual lithium cells connected in series to produce around 12.8 volts of nominal voltage. The most popular type for this voltage range is the Lithium Iron Phosphate (LiFePO4) battery. This chemistry is well-regarded for its stability, safety, and ability to withstand thousands of charge-discharge cycles.
Although the name suggests “12 volts,” a fully charged lithium battery will usually measure between 14.4V and 14.6V, while a fully discharged one may read about 10V to 11V depending on the design.
A crucial component inside every modern lithium battery is the Battery Management System (BMS). The BMS controls the charging and discharging process, prevents overcharging, stops over-discharge, manages temperature, and protects the battery from short circuits. Without a BMS, lithium batteries would be more vulnerable to damage and safety hazards.
Why Choose a 12 Volt Lithium Battery Over Lead-Acid?
For decades, lead-acid batteries dominated the 12V category. However, lithium batteries have become a superior replacement for several reasons:
1. Longer Lifespan
A typical deep-cycle lead-acid battery lasts around 300–500 cycles at 50% depth of discharge. In contrast, a quality lithium battery can last 2,000–5,000 cycles at 80% depth of discharge. That’s a service life that can stretch well over 10 years.
2. More Usable Energy
Lithium batteries allow up to 100% depth of discharge in some models, giving you the full rated capacity. With lead-acid, you often get only about half the capacity before risking long-term damage.
3. Lightweight Design
Lithium batteries weigh about 60–70% less than equivalent lead-acid batteries, which is a huge advantage for mobile setups like RVs, boats, and portable power systems.
4. Faster Charging
Lithium accepts higher charging currents, meaning it can charge in a fraction of the time needed for lead-acid. Many users report up to four times faster charging speeds.
5. High Efficiency
With charge and discharge efficiencies above 95%, lithium batteries waste very little energy. Lead-acid batteries typically hover around 80–85%.
6. Minimal Maintenance
Lead-acid batteries may require topping up fluids and regular equalizing charges. Lithium batteries are maintenance-free, aside from occasional checks.
Main Applications of 12 Volt Lithium Batteries
The versatility of a 12V lithium battery makes it suitable for countless uses. Here are the most common applications:
Renewable Energy Storage
Off-grid solar and wind systems rely on batteries to store energy for nighttime or cloudy days. Lithium’s deep discharge capability and long lifespan make it ideal for residential and commercial solar battery banks.
Recreational Vehicles (RVs)
RVers appreciate lithium batteries for their light weight, fast charging, and ability to power appliances longer without recharging. They also perform well with solar panels installed on RV roofs.
Marine and Boating
Boaters benefit from lithium’s high energy density, reduced weight, and resistance to vibration. A lighter battery bank means better fuel efficiency and easier handling.
Electric Mobility
Golf carts, small electric cars, and scooters often use lithium batteries for improved performance, faster acceleration, and longer operating time between charges.
Backup Power Systems
Businesses, hospitals, and homes use 12V lithium batteries as part of UPS (Uninterruptible Power Supply) systems to keep essential electronics running during outages.
Portable Power Packs
Outdoor activities, camping, and field work often require portable battery systems. Lithium packs are ideal because they can hold a charge for months with very little self-discharge.
How a 12 Volt Lithium Battery Works
The basic operation of a lithium battery involves the movement of lithium ions between the positive and negative electrodes through an electrolyte. When charging, lithium ions move from the positive cathode to the negative anode. During discharge, they return to the cathode, releasing stored energy in the process.
The BMS ensures safe operation by monitoring voltage, current, and temperature. If any value exceeds safe limits, the BMS disconnects the battery to prevent damage or hazards.
Important Specifications to Understand
Before buying a 12 volt lithium battery, it’s important to know what the technical terms mean:
- Capacity (Ah) – Measured in ampere-hours, it tells you how much energy the battery can store. A 100Ah battery can theoretically supply 1 amp for 100 hours or 10 amps for 10 hours.
- Cycle Life – The number of complete charge and discharge cycles the battery can handle before capacity drops significantly.
- Maximum Continuous Discharge Current – The highest current the battery can provide without damage.
- Charge Voltage – Typically between 14.4V and 14.6V for LiFePO4 batteries.
- Operating Temperature Range – Determines where the battery can be safely used. Some lithium batteries cannot be charged below freezing unless they have built-in heaters.
Charging a 12 Volt Lithium Battery
Using the right charger is essential. Chargers designed for lead-acid batteries may not work efficiently with lithium unless they have a specific lithium charging mode.
The ideal charging process for LiFePO4 includes:
- Bulk Charge – The charger delivers maximum current until the voltage reaches around 14.4–14.6V.
- Absorption Stage – The voltage is held steady while the current gradually decreases.
- No Float or Trickle Needed – Unlike lead-acid, lithium batteries do not require constant float charging and can be disconnected after charging without harm.
Safety Features and Precautions
LiFePO4 chemistry is inherently safer than other lithium types like lithium cobalt oxide. It is highly resistant to thermal runaway and does not ignite easily. Still, you should:
- Avoid using damaged or swollen batteries.
- Use only approved chargers and equipment.
- Keep the battery away from direct heat sources.
- Ensure ventilation in enclosed spaces.
- Avoid deep discharges below the manufacturer’s recommended limit.
Cost and Long-Term Value
The biggest drawback for some buyers is the upfront price. A 12 volt lithium battery can cost two to four times more than a lead-acid equivalent. However, considering the much longer lifespan, better performance, and reduced maintenance, lithium often proves more cost-effective over time.
For example, a quality lithium battery might last 10 years, while you would have to replace a lead-acid battery multiple times within that period.
Environmental Considerations
Lithium batteries are more eco-friendly than lead-acid because they don’t contain toxic heavy metals like lead. They also require fewer replacements, meaning less waste. Recycling infrastructure for lithium batteries is improving each year, allowing recovery of valuable materials like lithium, iron, and copper.
Tips for Maximizing Battery Life
- Avoid Full Discharge – Even though lithium can handle deep discharges, staying above 20% capacity helps extend life.
- Charge with a Compatible Charger – Using the wrong charger can shorten battery life or cause safety issues.
- Store at Partial Charge – If storing for months, keep the battery at about 50–60% capacity.
- Keep Temperatures Moderate – Extreme cold or heat can reduce performance and lifespan.
- Check Firmware or BMS Updates – Some advanced lithium batteries allow software updates to improve performance.
Choosing the Best 12 Volt Lithium Battery
When shopping, consider:
- Reputation of the Manufacturer – Well-known brands typically offer better quality control.
- Warranty – A 5- to 10-year warranty shows confidence in the product.
- Customer Support – Responsive technical support is essential for troubleshooting.
- Application Fit – Match the battery’s specifications to your exact needs, whether it’s solar storage, marine, or RV use.
The Future of 12 Volt Lithium Batteries
As manufacturing technology improves and raw material sourcing becomes more efficient, the cost of lithium batteries is expected to fall. Upcoming innovations may increase energy density, reduce weight even further, and enhance charging speed. Integration with smart monitoring systems will also give users real-time data to manage their power more effectively.
Final Thoughts
The 12 volt lithium battery has transformed the way we think about portable and stationary energy storage. Its combination of light weight, long life, high efficiency, and low maintenance makes it an ideal choice for applications ranging from off-grid living to marine power. While the initial investment can be higher, the return in reliability and performance more than justifies the cost.
For anyone looking for a dependable, future-proof power solution, the 12V lithium battery stands out as a leading option in today’s energy market.
