Introduction to ESD Flooring Standards

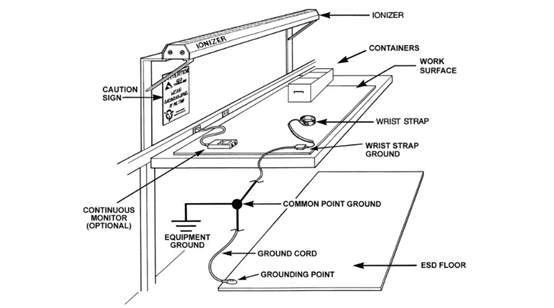

Electrostatic discharge (ESD) flooring is a critical component in creating safe electrostatic protected areas (EPAs) for electronics manufacturing, data centers, and other sensitive environments. Two primary standards govern ESD flooring performance: ANSI/ESD STM7.1 (North American standard) and EN 1081 (European standard). While both evaluate flooring conductivity, their testing methods and compliance requirements differ significantly. This article examines these key differences and provides guidance for selecting compliant ESD flooring solutions.
Purpose and Scope of ESD Flooring Standards
ANSI/ESD STM7.1 focuses specifically on measuring the electrical resistance of flooring materials used in ESD control programs. It applies to all static-control flooring types, including tiles, coatings, and carpets.
EN 1081 is part of the broader European standard for resilient, textile, and laminate floor coverings, with specific provisions for electrical resistance. Unlike STM7.1, it also addresses general flooring performance characteristics like wear resistance and slip properties.
Key Testing Methodologies Compared
The standards employ different approaches for evaluating flooring conductivity:
ANSI/ESD STM7.1 Testing Protocol
– Measures point-to-point (Rtt) and point-to-ground (Rtg) resistance
– Uses a 10-pound electrode with 5kV or 100V test voltage
– Requires testing under controlled humidity (12-50% RH)
EN 1081 Testing Protocol
– Evaluates surface resistance (Rs) and volume resistance (Rv)
– Specifies a 2.5kg electrode with 100V test voltage
– Conducts testing at standard conditions (23°C, 50% RH)
Resistance Requirements and Compliance Thresholds
The standards define different acceptable resistance ranges:
| Standard | Test Method | Compliance Range |
|———-|————|—————-|
| ANSI/ESD STM7.1 | Point-to-Point (Rtt) | 10^5 – 10^9 ohms |
| ANSI/ESD STM7.1 | Point-to-Ground (Rtg) | 10^5 – 10^9 ohms |
| EN 1081 | Surface Resistance (Rs) | ≤10^9 ohms |
| EN 1081 | Volume Resistance (Rv) | ≤10^9 ohms |
Environmental Conditioning Requirements
ANSI/ESD STM7.1 mandates more stringent environmental preconditioning:
– 72-hour acclimation at 12% RH and 50% RH
– Testing performed at both humidity extremes
EN 1081 requires testing only at standard conditions (23°C ± 2°C, 50% ± 5% RH), making it less rigorous for environmental variations.
Additional Performance Considerations
While both standards address electrical resistance, EN 1081 includes broader flooring performance criteria:
– Abrasion resistance (EN 660)
– Slip resistance (EN 13893)
– Indentation resistance (EN 433)
– Reaction to fire (EN 13501-1)
Certification and Marking Requirements
ANSI/ESD STM7.1 Compliance:
– Products may display ESD Association logos
– Requires periodic retesting for continued compliance
EN 1081 Compliance:
– CE marking required for European market
– Must be accompanied by Declaration of Performance (DoP)
– Testing typically performed by notified bodies
Choosing the Right Standard for Your Application
Selection depends on several factors:
Choose ANSI/ESD STM7.1 if:
– Your operations are primarily in North America
– You need compliance with ANSI/ESD S20.20 programs
– Environmental extremes are a concern
Choose EN 1081 if:
– You’re supplying to European markets
– You need comprehensive flooring performance data
– CE marking is required for your application
Global Considerations and Dual Compliance
Many international manufacturers seek compliance with both standards by:
– Conducting parallel testing to both protocols
– Selecting flooring materials that meet all requirements
– Maintaining separate certification documentation
Maintenance and Long-Term Compliance
Both standards require periodic verification:
– ANSI/ESD STM7.1: Recommends quarterly resistance testing
– EN 1081: Requires regular inspections per the manufacturer’s instructions
Conclusion: Selecting the Appropriate Standard
Understanding the differences between ANSI/ESD STM7.1 and EN 1081 is essential for specifying compliant ESD flooring. While both standards ensure adequate electrostatic protection, their testing methodologies and compliance requirements differ significantly. North American operations typically require ANSI compliance, while European markets mandate EN 1081. Global organizations should consider dual-compliance solutions to meet all regulatory requirements. By carefully evaluating these standards against your specific needs, you can implement ESD flooring that provides reliable, long-term protection for sensitive environments.
