When it comes to industrial piping systems, selecting the right components is crucial for ensuring long-term durability, proper functionality, and safety. At Tianjin United Steel Pipe Co., Ltd (TUSPIPE), we offer a comprehensive range of steel pipes and fittings designed to meet global standards. In this article, we’ll explore Weld Neck Flange Class 150 and 300 dimensions, and clarify Galvanized vs Black Pipe: what’s the difference—two of the most common questions we receive from customers.
What Is a Weld Neck Flange?
A Weld Neck Flange (WNF) is a type of flange designed to be welded to a pipe, offering a strong connection that can handle high-pressure and high-temperature environments. These flanges have a long tapered hub that adds strength and reduces stress concentration. Weld neck flanges are ideal for critical applications such as oil and gas, chemical processing, and power generation.

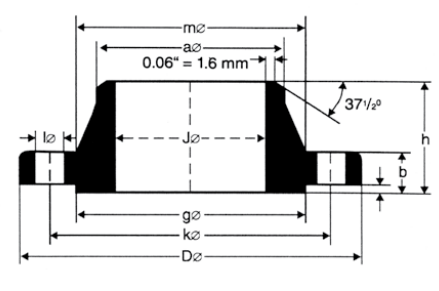

Weld Neck Flange Class 150 and 300 Dimensions
Flanges are classified based on pressure ratings, commonly referred to as “Classes.” Two of the most used ratings are Class 150 and Class 300, as defined by ASME B16.5 standards.
Class 150 Weld Neck Flange Dimensions (Standard Sizes):
| Nominal Pipe Size (NPS) | Outside Diameter (OD) | Bolt Circle Diameter | No. of Bolts | Flange Thickness |
| 1″ | 4.25 in (108 mm) | 3.125 in (79 mm) | 4 | 0.56 in (14 mm) |
| 2″ | 6 in (152 mm) | 4.75 in (121 mm) | 4 | 0.69 in (17.5 mm) |
| 4″ | 9 in (229 mm) | 7.5 in (191 mm) | 8 | 0.94 in (24 mm) |
Class 300 Weld Neck Flange Dimensions (Standard Sizes):
| Nominal Pipe Size (NPS) | Outside Diameter (OD) | Bolt Circle Diameter | No. of Bolts | Flange Thickness |
| 1″ | 4.88 in (124 mm) | 3.5 in (89 mm) | 4 | 0.69 in (17.5 mm) |
| 2″ | 6.5 in (165 mm) | 5.5 in (140 mm) | 8 | 0.81 in (20.6 mm) |
| 4″ | 10.75 in (273 mm) | 8.25 in (210 mm) | 8 | 1.13 in (29 mm) |
🛠️ Note: Class 300 flanges are thicker and have more bolts, enabling them to withstand higher pressure compared to Class 150 flanges. Choose based on your pressure requirement and application.
TUSPIPE offers a full range of weld neck flanges in Class 150, 300, 600, 900, and beyond, all manufactured to meet ASME, ANSI, and EN standards. Contact us for specific dimension charts and custom orders.
Galvanized vs Black Pipe: What’s the Difference?
Another common query we get from project managers, engineers, and procurement teams is the difference between galvanized pipe and black pipe. While both are made of steel and are used in a variety of applications, there are significant differences in coating, corrosion resistance, application, and appearance.
- What Is Galvanized Pipe?
Galvanized pipes are coated with a layer of zinc to protect the steel from corrosion. This process, known as hot-dip galvanizing, makes them ideal for water supply lines and outdoor use.
Key Benefits of Galvanized Pipe:
- Corrosion-resistant
- Long-lasting in outdoor conditions
- Suitable for plumbing and water systems
Typical Uses:
- Water supply
- Fencing
- Outdoor structures
- Irrigation systems
- What Is Black Pipe?
Black pipe is made of uncoated steel and has a dark-colored iron oxide surface, which is why it’s called “black.” It’s often used for gas transportation and in fire sprinkler systems.
Key Benefits of Black Pipe:
- Strong and durable
- Cost-effective
- Ideal for carrying natural gas
Typical Uses:
- Gas lines
- Fire protection systems
- Oil and petroleum applications
- Industrial projects
- Comparison Chart: Galvanized vs Black Pipe
| Feature | Galvanized Pipe | Black Pipe |
| Coating | Zinc coating | No coating (black iron oxide) |
| Corrosion Resistance | High (especially in moist environments) | Low |
| Typical Use | Water, outdoor structures | Gas, oil, and industrial applications |
| Cost | Slightly more expensive | Less expensive |
| Welding Suitability | Not recommended due to zinc fumes | Easy to weld |
⚠️ Safety Tip: Welding galvanized pipe releases toxic zinc fumes, so black pipe is the safer choice for welding and gas line applications.
Which One Should You Choose?
- Choose Weld Neck Flange Class 150 if your application involves low to moderate pressure and cost-efficiency is a concern.
- Choose Class 300 for higher-pressure applications requiring robust sealing and structural integrity.
- Choose Galvanized Pipe for water lines, irrigation, and corrosion-prone environments.
- Choose Black Pipe for gas transportation, fire protection systems, and industrial applications.
At TUSPIPE, we manufacture and supply a wide range of steel pipe products, including ERW pipes, seamless pipes, galvanized steel pipes, and high-quality pipe fittings such as weld neck flanges, elbows, and tees. We ensure compliance with international standards and deliver products that perform under pressure.
Why Choose TUSPIPE?
✅ Over 25 Years of Industry Experience
✅ ISO and API Certified Manufacturer
✅ Custom Sizing and Coating Options
✅ Global Export Capability
✅ Strict Quality Control System
From weld neck flange Class 150 and 300 to galvanized and black steel pipes, our engineering and manufacturing expertise ensures that your piping system is reliable, efficient, and safe.
Final Thoughts
Understanding the dimensions of weld neck flanges and Galvanized Vs Black Pipe, What ‘s The Difference is essential for making the right decisions in any piping system. Whether you are building a water supply line, an industrial gas pipeline, or an oil transportation system, TUSPIPE is here to provide you with reliable, certified, and durable steel piping solutions.
