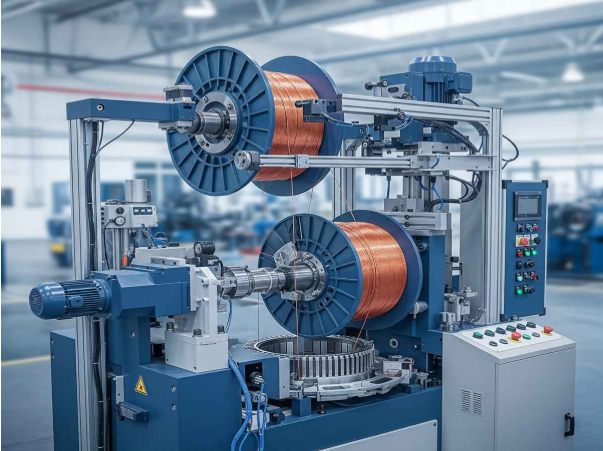

Electric motor winding equipment is vital for building and repairing motors used in everything from small appliances to large industrial systems. These machines require continuous operation and precise control to ensure coil accuracy and motor efficiency. Due to their complexity and workload, they are prone to various issues that can disrupt production. If not addressed in time, these issues may lead to costly downtime and reduced motor quality.
By identifying common problems early and implementing corrective actions, manufacturers can maintain high productivity and consistent winding performance. Understanding the root causes of faults helps reduce waste, extend equipment life, and ensure the reliability of motors. A well-maintained winding system leads to fewer defects and better energy efficiency.
Common Problems and Their Solutions
Electric motor winding machines may experience a range of technical and operational issues during regular use. These problems can affect machine output, motor quality, and overall production efficiency. Recognizing these issues and applying targeted solutions is a key to long-term performance. Below are some of the most common faults along with their possible solutions.
1. Power Supply Issues
Electric motor winding equipment depends on a stable power supply to function effectively. Power fluctuations such as voltage drops, spikes, or inconsistent frequencies can lead to malfunctioning components, turn miscounts, random stops, and damage to electrical control systems. These irregularities not only interrupt production but also stress the internal systems of the winding machine over time, increasing the likelihood of failure during high-load operations.
Solution:
To prevent power-related problems, install voltage regulators, automatic power stabilizers, and surge protectors on every winding unit. Additionally, investing in an uninterruptible power supply (UPS) will ensure continuity during short outages. Routine inspection of the power infrastructure, especially grounding and circuit protection devices, ensures safe and consistent power flow and minimizes the impact of electrical disturbances.
2. Insulation Failures
Insulation between the windings is crucial for motor safety and performance. Failure of insulation results in electrical short circuits, dangerous arcing, reduced motor efficiency, and, in severe cases, complete motor burnout. This often happens due to mishandling during the winding process, poor-quality insulation materials, excess tension, and exposure to high humidity or contaminants during storage or operation.
Solution:
Select only high-grade insulation materials rated for the motor’s voltage and temperature class. Train operators to apply insulation materials properly and handle wires without damaging the coating. Store all insulating components in a dry, temperature-controlled area. Regular dielectric strength testing and insulation resistance measurements should be performed to verify the quality before and after winding.
3. Overheating Problems
Overheating is a frequent problem in electric motor winding equipment, especially when machines are run continuously at high speeds or under excessive loads. It leads to deterioration of insulation, deformation of components, and thermal stress that compromises the precision of winding. Poor ventilation, blocked cooling fans, and insufficient lubrication can all contribute to this condition.
Solution:
Implement effective thermal management by ensuring that cooling fans and air filters are cleaned regularly and functioning optimally. Set temperature limits and include automatic thermal cutoff systems to prevent equipment from running when unsafe temperatures are detected. Schedule downtime between cycles and avoid running the machine beyond its rated capacity to prevent chronic overheating.
4. Tension Inconsistencies
Uneven wire tension during winding causes overlapping turns, loose or stretched wires, and misaligned coils, which negatively affect the magnetic balance of the motor. The problem can result from faulty tension controllers, improper calibration, dirty tension disks, or worn-out mechanical tensioners. Tension inconsistency may also cause premature breakage or weak coil structures.
Solution:
Calibrate tension settings before each operation and replace any components showing signs of wear. Incorporate real-time tension monitoring systems that adjust tension dynamically based on wire feed speed. Use closed-loop control systems to maintain uniformity, and conduct visual checks at the beginning and end of each coil to ensure even tension throughout.
5. Wire Breakage
Frequent wire breakage during winding disrupts workflow, wastes material, and forces operators to restart coils, reducing overall productivity. The main causes include brittle wire, sharp guides, misaligned pulleys, or excessive tension. Wire breakage can also lead to machine damage or failed electrical testing of the completed motor coil.
Solution:
Use wires that meet flexibility and tensile strength standards for the intended motor type. Inspect all rollers, guides, and tensioners for burrs or sharp edges that could damage the wire. Adjust feed speed and tension based on the gauge of wire used. Employ automated wire feeding systems with smooth transitions to minimize mechanical stress on the wire.
6. Misalignment of Coils
Coil misalignment affects the uniformity of the magnetic field, leading to imbalance, vibration, noise, and inefficient operation in the final motor. Misalignment is usually caused by incorrect positioning of the stator or rotor, mechanical instability, or improper layering settings in the control program. It may also result from vibration during winding.
Solution:
Use fixtures and jigs to secure cores in the correct position during winding. Implement automated coil layering systems with real-time feedback sensors to maintain correct turn placement. Periodically verify alignment with measuring tools or vision systems. Ensure the base of the winding machine is stable and all fasteners are securely tightened to prevent shifting.
7. Incorrect Turn Counts
Incorrect turn counts compromise motor performance by altering electrical characteristics such as inductance, resistance, and torque output. This issue can stem from faulty turn counters, miscommunication between software and hardware, or manual input errors. Even a minor discrepancy in turns can cause a motor to overheat or fail testing protocols.
Solution:
Install dual-turn counters for redundancy and run trial operations to verify accuracy. Periodically test the encoder systems and recalibrate them as needed. Lock program settings for different motor types to prevent accidental changes, and use software that prompts operators to confirm parameters before starting a job.
8. Noise and Vibration
Noise and vibration during winding typically indicate imbalance or wear in the machine’s rotating components. Common causes include misaligned spindles, loose bearings, warped pulleys, or incorrect mounting. These disturbances can result in inconsistent wire placement and even damage to winding materials or the machine itself.
Solution:
Inspect the spindle and its drive system for alignment and wear before each production cycle. Install anti-vibration mounts to stabilize the machine and reduce shock. Balance all rotating components using diagnostic tools. Regular maintenance of bearings and lubrication points helps reduce friction and prolong equipment life.
10. Poor Wire Feeding
Improper wire feeding leads to tension spikes, misfeeds, and overlapping turns, affecting the coil structure and performance. Causes include dirty rollers, misaligned guides, and incorrectly placed spools that create resistance in the wire path. Poor feeding also contributes to frequent stops and increased scrap rates.
Solution:
Clean all wire guides, rollers, and feeders regularly and inspect for signs of damage or misalignment. Ensure that spools are correctly positioned to allow smooth unwinding. Implement servo-controlled feeding systems that adapt in real time to feed requirements, and perform feed-path simulations before starting new batches.
11. Spindle Malfunctions
The spindle is a central rotating part that supports the coil or core during winding. Spindle malfunctions, such as wobbling, inconsistent speed, or complete failure, may occur due to belt wear, motor issues, or bearing failure. Such issues reduce the precision of winding and can damage both the coil and the machine.
Solution:
Conduct routine checks on the spindle motor, belt tension, and bearing integrity. Use speed sensors to monitor spindle RPM and ensure consistency. Lubricate moving parts regularly and replace any worn components immediately. Reinforce training for maintenance staff to detect and address early signs of spindle wear.
12. Bearing Wear
Worn-out bearings generate friction and heat, causing the machine to vibrate, reduce winding accuracy, and eventually seize or fail. Factors contributing to bearing wear include overuse, contamination, lack of lubrication, and poor-quality bearing materials. Neglecting bearing maintenance reduces the machine’s lifespan.
Solution:
Use high-quality, sealed bearings with proper lubrication channels. Schedule bearing replacement intervals based on machine usage and environmental conditions. Implement vibration and temperature monitoring systems to detect early failure signs. Keep the machine environment clean to prevent contaminants from entering bearing housings.
13. Excessive Downtime
Unexpected downtime from frequent maintenance or breakdowns hampers productivity, increases labor costs, and causes delivery delays. Contributing factors include insufficient maintenance planning, untrained staff, and a lack of diagnostic tools. Downtime can also affect production targets and customer satisfaction.
Solution:
Establish a preventive maintenance routine that includes scheduled inspections, part replacements, and performance checks. Train operators in basic troubleshooting to handle minor issues without waiting for technicians. Maintain a stock of essential spare parts and use maintenance logs to identify recurring faults and optimize uptime.
14. Operator Errors
Even with high-tech machines, human error remains a common cause of faults in the winding process. Mistakes such as incorrect wire placement, wrong tension settings, or poor material handling can result in defective coils and equipment damage. Inconsistent training and unclear procedures worsen the risk.
Solution:
Develop standardized work procedures and provide comprehensive training for all operators. Utilize intuitive software interfaces that guide users step-by-step. Implement visual checklists, QR-coded job cards, and machine locks to prevent unauthorized changes to settings. Regular skill assessments will keep the team updated and competent.
Built by Honest Automation
When considering electric motor winding equipment, many manufacturers prefer solutions from Honest Automation due to their reputation for durability, precision, and consistent performance. Their machines are widely used across industries where long-term reliability and winding accuracy are essential to production success.
Buyers seeking dependable, high-quality winding equipment built for long-term use may find honest automation to be a strong choice. For more information or to make an inquiry, you can contact them directly:
Phone: +86 189 2373 2990
Email: [email protected]
Website: https://www.honest-hls.com/
Conclusion
Troubleshooting common issues in electric motor winding equipment involves a combination of technical know-how, regular maintenance, and proactive monitoring. Each problem, whether mechanical, electrical, or software-related, has identifiable symptoms and practical solutions. By addressing these issues promptly and effectively, manufacturers can ensure that winding operations remain efficient, accurate, and cost-effective. Investing in quality equipment, regular training, and proper maintenance is the key to minimizing problems and maximizing productivity in electric motor winding applications.
