In today’s fast‑paced, high‑precision manufacturing landscape, CNC Swiss machining stands out as a cornerstone technology for producing complex, tight‑tolerance components at scale. From medical devices to aerospace fittings, electronics connectors to automotive sensors, Swiss‑turned parts are integral to industries demanding exacting specifications and impeccable surface finishes. This comprehensive guide explores the fundamentals of CNC Swiss machining, its advantages, micro Swiss machining capabilities, applications, and best practices for partnering with a Swiss machine shop.

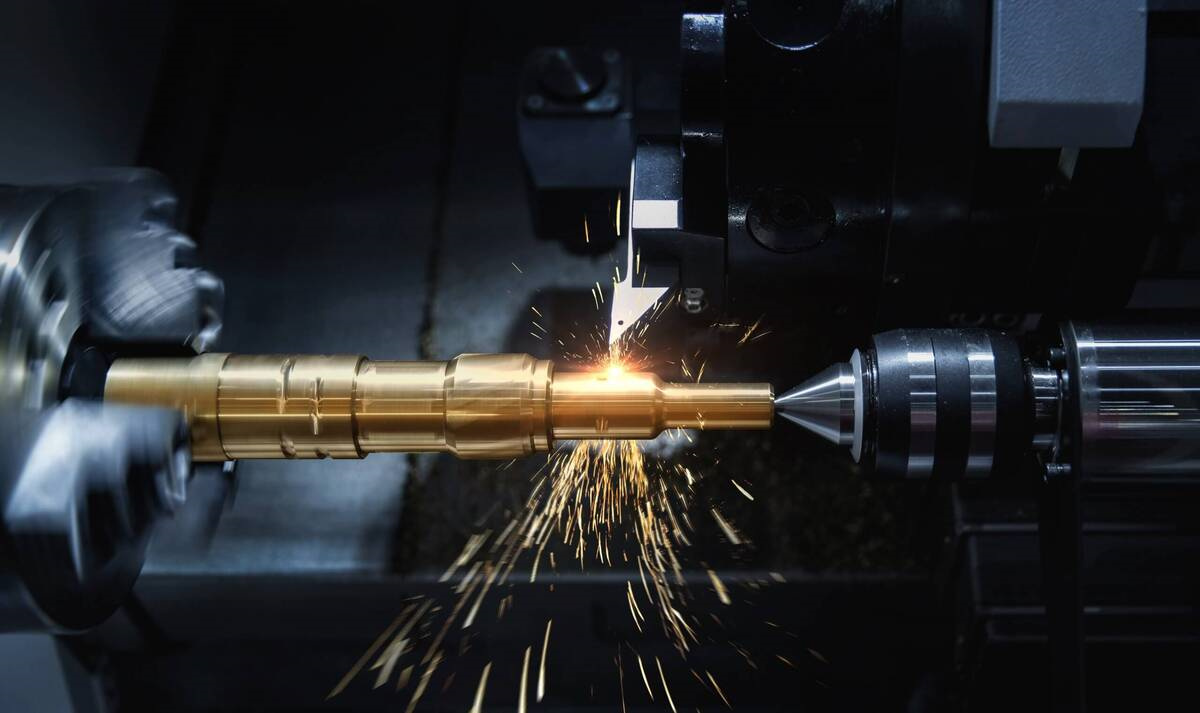

What Is CNC Swiss Machining?
Swiss machining—often called Swiss‑type turning—originated in 19th‑century Switzerland to produce watch components with extreme precision. Unlike conventional turning centers, Swiss machines feed the workpiece through a guide bushing close to the cutting tools. This setup minimizes deflection on slender parts, allowing multiple tools (turning, milling, drilling, tapping) to work simultaneously along its length.
Modern CNC Swiss machines combine this guide‑bushing principle with multi‑axis control. They can hold bar stock in collets, pushing it through the bushing in precise increments (“slides”) while synchronized spindles and turrets execute complex cuts. The result: intricate geometries, diameters as small as 0.5 mm, and lengths that far exceed conventional slenderness ratios.
Key Advantages of Swiss‑Type Turning
- Exceptional Precision & Repeatability
Guide bushings constrain the workpiece, reducing vibration and tool deflection—critical for close tolerances (± 0.005 mm) and fine surface finishes (Ra 0.2 µm). - Complex Multi‑Operation Capability
Swiss machines integrate turning, milling, drilling, and tapping without secondary setups. Features such as cross‑drilling, polygon milling, and thread whirling can be performed in one cycle, slashing lead times and unit costs. - High Productivity
Continuous feeding of bar stock enables lights‑out operation and minimal material handling. Automated bar feeders and decompression cycles support high‑volume production runs with consistent quality. - Micro Machining for Miniature Parts
Swiss‑type lathes excel at producing micro components—medical guide wires, fiber‑optic connectors, micro‑nozzles—where diameters under 1 mm and lengths up to 100 mm demand stability and accuracy. - Material Versatility
From stainless steel and titanium to exotic alloys (Inconel, Hastelloy) and plastics (PEEK, Delrin), Swiss machining accommodates diverse materials, each requiring optimized cutting parameters.
Components & Applications
- Medical & Dental Devices
- Bone Screws & Implants: Titanium screws with precision threads and internal channels for fluid delivery.
- Hypodermic Needle Hubs: Components with sub‑millimeter bores and smooth tapers.
- Dental Drill Bits: Micro‑fluted cutting tools requiring exact geometries and balanced finishes.
- Aerospace & Defense
- Fuel Nozzles: Multi‑port, drilled nozzles with complex internal passages for spray atomization.
- Sensor Housings: Stainless steel or Invar components with finely milled surfaces and integrated mounting features.
- Fasteners & Inserts: High‑strength, corrosion‑resistant studs and standoffs with consistent thread quality.
- Electronics & Connectors
- RF Coaxial Connectors: Gold‑plated pin housings and dielectric assemblies with 50 Ω impedance control.
- Micro Pins & Leads: Copper or beryllium copper pins with tight concentricity for test probes and connectors.
- Heat Sink Pins: Fins and channels micro‑machined into copper or aluminum inserts for thermal management.
- Automotive & Industrial
- Fuel Injector Components: Nozzles, pintles, and springs with high fatigue life and wear resistance.
- Hydraulic Fittings: Brass or stainless steel connectors with O‑ring grooves and complex valve seats.
- Sensor Shafts: Stainless steel axles for position sensors, with precise diameters and keyways.
Micro Swiss Machining: Pushing the Limits
Micro Swiss machining extends traditional Swiss turning to sub‑millimeter tolerances and features:
- Ultra‑Fine Diameters: Diameters down to 0.25 mm are achievable, essential for capillary tubes and micro‑actuator components.
- High Aspect Ratios: Parts with slenderness ratios (length-to-diameter) exceeding 100:1 can be produced without deflection or vibration.
- Advanced Tooling: Diamond‑coated tools and micro‑endmills minimize wear and maintain geometry at the micro scale.
- Cleanroom Capabilities: For medical and semiconductor applications, micro parts can be machined and packaged in ISO‑classified environments to prevent contamination.
These capabilities allow manufacturers to innovate in miniaturized technologies—lab‑on‑a‑chip devices, MEMS components, and next‑generation sensors.
Best Practices for Designing Swiss‑Machined Parts
- Maintain Generous Radii
Avoid sharp internal corners; use radii ≥ 0.5 × tool nose radius to improve chip flow and tool life. - Simplify Geometry
Minimize excessive features along slender sections. Wherever possible, group similar features concentrically to reduce tool changes. - Specify Tolerances Wisely
Reserve tight tolerances for critical dimensions; relax non‑functional features to reduce machining time and cost. - Provide Detailed Technical Drawings
Include surface finish, material specifications, heat‑treatment requirements, and any post‑processing (passivation, plating) clearly on drawings. - Consult Early with Your Machinist
Swiss machine shops can recommend design adjustments—tolerance relaxations, feature consolidations—to enhance manufacturability and cost efficiency.
Choosing the Right Swiss Machine Shop
When selecting a partner for CNC Swiss machining, consider:
- Experience & Certifications
Look for ISO 9001, AS9100 (aerospace), or ISO 13485 (medical) certifications that demonstrate quality management systems and regulatory compliance. - Equipment & Capability
Verify the shop’s Swiss‑type lathe fleet—single‑spindle for smaller runs, multi‑spindle for higher throughput, and sliding headstock models for micro components. Also check secondary operations: CNC milling, grinding, EDM. - Material Expertise
Ensure the shop’s tooling library and cutting‑parameter database cover your materials—especially if you require exotic alloys or high‑hardness steels. - Quality Control Systems
On‑site metrology—CMMs, optical comparators, laser scanners—allows in‑process inspections and final audits, reducing scrap and guaranteeing first‑pass yield. - Supply Chain & Delivery
A robust supply chain for bar stock, tooling, and packaging, plus globally‑capable logistics, ensures your parts arrive on time—domestically or internationally. - Technical Support & Collaboration
A responsive engineering team that offers DFM reviews, process simulations, and real‑time production monitoring can save time and elevate part performance.
The Future of Swiss Machining
Emerging trends position CNC Swiss machining at the forefront of advanced manufacturing:
- Automation & Industry 4.0
Robotic bar loaders, automatic parts sorters, and AI‑driven process monitoring enable lights‑out operations and predictive maintenance, driving down costs and downtime. - Hybrid Machining
Integration of additive manufacturing (metal 3D printing) with Swiss turning allows complex internal structures—conformal cooling channels, lattice geometries—beyond subtractive limits. - Advanced Materials
As new high‑entropy alloys, bioresorbable metals, and ceramic composites enter production, Swiss machine shops will develop specialized tooling and cooling strategies to handle these materials. - Sustainability
Water‑based coolants, optimized cutting parameters, and near‑net‑shape machining reduce waste and environmental impact—aligning Swiss machining with corporate sustainability goals.
Conclusion
CNC Swiss machining remains the gold standard for producing precision turned components and micro‑machined parts across demanding industries. Its unique guide‑bushing design, multi‑operation capability, and ability to machine complex geometries in a single setup deliver unmatched accuracy, surface finish, and productivity. By understanding the technology’s fundamentals, design best practices, and how to choose a capable Swiss machine shop, you can unlock the full potential of Swiss‑type turning—driving innovation, reducing costs, and ensuring your parts perform flawlessly in their critical applications.
Whether you need thousands of stainless steel shafts or a few hundred micro‑nozzles, CNC Swiss machining offers the consistency, flexibility, and precision required to stay ahead in today’s competitive manufacturing environment.
